PEGylated Peptides Research: A Practical Design Guide
- 2 days ago
- 18 min read
PEGylated peptides are peptides covalently modified with polyethylene glycol (PEG) to extend circulation half-life, reduce proteolytic degradation, and alter biodistribution. The modification is well-established across dozens of approved therapeutics, yet the difference between a conjugate that works and one that loses potency almost entirely comes down to three variables: the site of conjugation, the PEG architecture (linear vs. branched; monodisperse vs. polydisperse), and the linker chemistry connecting PEG to the peptide backbone.
Get those three right, and PEGylation extends half-life, improves solubility, and reduces immunogenicity without gutting binding potency. Get them wrong, and you end up with a well-shielded molecule that no longer recognizes its target.
Before reading further, keep these research implications in mind:
Activity vs. half-life trade-off: Larger PEG chains and higher degrees of modification increase shielding but raise the risk of steric blockade at the binding interface.
Analytics are non-negotiable: Intact LC-MS, peptide mapping, and SEC must be planned before synthesis, not after.
Site selection drives everything else: N-terminal, cysteine, lysine, and engineered-site strategies each carry distinct functional consequences that no amount of PEG optimization can fully compensate for.
Key Takeaways
Site selection, PEG architecture, and linker chemistry are the three variables that determine whether a PEGylated peptide retains activity, and all three must be resolved before synthesis begins.
Point | Details |
Attachment site first | Select the conjugation site based on structural or activity data before choosing PEG MW or end group. |
Architecture drives shielding and risk | Branched PEGs shield more surface area but increase steric blockade risk; monodisperse PEGs simplify characterization. |
Analytics must be planned upfront | Intact LC-MS, peptide mapping, SEC, and RP-HPLC are the minimum required to confirm site, purity, and aggregation state. |
Immunogenicity monitoring is non-optional | Pre-dose anti-PEG antibody screening should be built into every repeat-dose preclinical study from the start. |
Rapidcorebio for verified substrates | Rapidcorebio provides research-grade peptides with batch-specific HPLC and MS COA documentation for traceable PEGylation studies. |
Table of Contents
Why pegylated peptides research matters: scope, benefits, and real limits
PEG physicochemical properties and how researchers classify them
Design variables: choosing MW, architecture, linker chemistry, and placement
Stepwise synthetic workflow from substrate to purified conjugate
Key analytical techniques and release testing for PEGylated peptides
Formulation, stability, and PK/ADME factors for PEGylated research compounds
Immunogenicity risks, anti-PEG antibodies, and mitigation strategies
Selected therapeutic and research examples that illustrate design choices
Practical recommendations, common pitfalls, and research-grade sourcing
Conclusion and next steps for researchers planning PEGylation projects
The field is moving faster than most labs’ analytics can keep up
Rapidcorebio supports your PEGylation research from substrate to COA
Why pegylated peptides research matters: scope, benefits, and real limits
PEGylation attaches one or more PEG chains to a peptide through a covalent bond, typically at an amine, thiol, or engineered functional group. The primary aims are well-documented: extending in vivo half-life by increasing hydrodynamic radius and slowing renal filtration, reducing susceptibility to proteases, improving aqueous solubility for otherwise hydrophobic sequences, and dampening immune recognition.
Those benefits are real and reproducible. The limits are equally real, and researchers who ignore them waste reagents and time.
What PEGylation reliably delivers:
Reduced renal clearance for peptides below the glomerular filtration threshold
Measurable protection from serum proteases, particularly for short sequences
Improved solubility for aggregation-prone or hydrophobic peptides
Reduced first-pass immunogenicity in many (not all) peptide classes
What PEGylation cannot guarantee:
Preserved binding potency, especially when modification is random or near the active site
Elimination of immunogenicity, since anti-PEG antibodies are a documented concern in repeat-dose studies
Uniform conjugate populations when polydisperse PEG reagents are used
Biodegradability, which remains a limitation of conventional PEG
When to consider alternatives: Fusion protein partners (albumin, Fc) offer longer half-lives without the polydispersity problem. Lipidation suits fatty-acid receptor-mediated recycling. Cyclization or D-amino acid substitution addresses proteolysis without the steric cost. PEGylation is the right choice when solubility, moderate half-life extension, and reduced immunogenicity are all needed simultaneously, and when the attachment site can be controlled.
Pro Tip: Before committing to PEGylation, map the peptide’s binding interface computationally or by alanine scanning. Any residue that contributes to binding affinity is a poor attachment site, regardless of how convenient it is chemically.
PEG physicochemical properties and how researchers classify them
Choosing a PEG reagent without understanding its physicochemical profile is one of the most common sources of failed conjugations. The taxonomy matters because MW, architecture, and end-group chemistry each independently affect synthesis, purification, and in vivo behavior.
Molecular weight and hydrodynamic radius
PEG’s hydrodynamic radius grows disproportionately with MW because of its highly flexible, water-binding backbone. A 20 kDa PEG behaves in solution more like a 400 kDa globular protein in terms of hydrodynamic volume. For peptides, the practical MW range in experimental work runs from roughly 1 kDa to 40 kDa, with the 5–20 kDa window most commonly used to balance half-life extension against steric effects. Renal filtration threshold for PEG is approximately 30–50 kDa, so chains below that range are cleared renally; chains above it shift clearance toward hepatic and reticuloendothelial routes.
Architecture: linear, branched, and multi-arm
Linear PEGs are the simplest and most widely used. Branched (Y-shaped) PEGs provide greater steric shielding per attachment point, which can reduce immunogenicity but also increases the risk of blocking the binding interface. Multi-arm PEGs (4-arm, 8-arm) are used primarily in hydrogel and nanoparticle applications rather than direct peptide conjugation.
Monodisperse PEG alternatives, such as oligoethylene glycol polyamides (M-OEG), produce uniform conjugate populations with defined mass, which simplifies characterization and improves batch-to-batch reproducibility. Conventional polydisperse PEGs carry a distribution of chain lengths (expressed as PDI, polydispersity index), which complicates intact mass analysis and can obscure site-specific information.
PEG Type | Typical MW Range | Common End Groups | Key Experimental Implications |
Linear, methoxy-PEG | 2–40 kDa | Methoxy / NHS-ester | Standard half-life extension; simplest purification |
Branched (Y-PEG) | 20–40 kDa | NHS-ester / maleimide | Greater shielding; higher steric risk at binding site |
Monodisperse (M-OEG) | 1–5 kDa | Azide / alkyne / NHS | Uniform mass; cleaner MS spectra; biodegradable options available |
Multi-arm PEG | 10–40 kDa | NHS / maleimide / thiol | Hydrogel and nanoparticle use; rarely for direct peptide conjugation |
Heterobifunctional PEG | 2–20 kDa | NHS + maleimide / azide | Enables orthogonal dual-conjugation strategies |
Functional end groups and the chemistries they enable:
NHS-esters react with primary amines (lysine ε-amine, N-terminus) at pH 7–9; fast but non-selective on multi-lysine peptides
Maleimides react with free thiols (cysteine) at pH 6.5–7.5; highly selective when a single cysteine is present
Azides and alkynes enable copper-catalyzed (CuAAC) or strain-promoted (SPAAC) click chemistry for site-specific handles on noncanonical amino acids
Aldehyde-reactive PEGs (hydrazide, aminooxy) target oxidized N-terminal serines or threonines for selective reductive amination
Design variables: choosing MW, architecture, linker chemistry, and placement
Designing a PEGylated peptide is a decision tree, not a formula. Each variable interacts with the others, and the order in which you resolve them matters.
Start with the attachment site, not the PEG. The site determines which chemistry is available, which PEG end group you need, and how much steric risk you are accepting. Only after locking the site should you select MW and architecture.
Deciding on PEG molecular weight:
Higher MW increases hydrodynamic radius and extends half-life, but the relationship is not linear beyond a point. For peptides in the 1–5 kDa range, a 5–10 kDa PEG often produces the largest relative gain in circulation time. Pushing to 20–40 kDa adds marginal PK benefit while substantially increasing steric bulk. The practical guidance from the literature is to use the smallest PEG that achieves the target PK profile, then verify activity retention experimentally.
Linear vs. branched trade-offs:
Branched PEGs shield a larger surface area per conjugation point, which can reduce proteolysis and immunogenicity more effectively than a linear chain of equivalent MW. The cost is a higher probability of blocking the binding interface, particularly for short peptides where the PEG-to-peptide size ratio is already unfavorable. Site-specific PEGylation with a 5 kDa spacer-conjugated PEG has been shown to optimize uptake and immune modulation in bifunctional peptide models without the potency loss seen with random modification.
Linker chemistry: cleavable vs. non-cleavable:
Non-cleavable linkers (thioether from maleimide-thiol, amide from NHS-amine) are stable under physiological conditions and appropriate when sustained shielding is the goal. Cleavable linkers (disulfide, hydrazone, ester, or enzymatically labile sequences) release the PEG under defined conditions, restoring full peptide activity at the target site. Cleavable designs add synthetic complexity and require stability testing under both storage and physiological conditions.
Spacer length and flexibility:
A short, rigid spacer places the PEG close to the peptide backbone, maximizing shielding but increasing steric risk. A longer, flexible spacer (PEG-PEG or PEG-alkyl) allows the chain to extend away from the binding face. For peptides where the attachment site is near the active region, a 6–12 atom spacer often preserves activity better than direct conjugation.
Pro Tip: Run a brief in silico docking or homology model of your peptide with a PEG chain modeled as a flexible polymer at the intended attachment site. Even a rough model will reveal whether the chain projects toward or away from the binding interface, which is the single most useful pre-synthesis check.
Practical PEGylation strategies and chemistries
The chemistry you choose determines the selectivity, yield, and analytical complexity of the conjugation. Here is how the main approaches map to attachment sites and research contexts.
Chemistry-to-residue matching
NHS-ester PEGylation (amine-reactive): Reacts with the α-amine at the N-terminus and the ε-amine of any lysine residue. At pH 7.0–7.5, the N-terminus (pKa ~8) is partially deprotonated while lysine ε-amines (pKa ~10.5) are mostly protonated, giving modest N-terminal selectivity. True selectivity requires either a peptide with no lysine residues or pH-controlled conditions. Yields are typically good (60–90%), but the product is a mixture of positional isomers on multi-lysine peptides.
Maleimide PEGylation (thiol-reactive): Highly selective for free cysteine thiols at pH 6.5–7.5. If the peptide contains no native cysteine, one can be introduced by solid-phase synthesis. The thioether product is stable under most physiological conditions. Watch for maleimide hydrolysis at higher pH, which reduces reactivity, and for disulfide formation if the cysteine is not kept reduced before conjugation.
Enzymatic PEGylation: Transglutaminase (TGase) catalyzes PEG-amine transfer to glutamine residues in a LQXP recognition sequence, offering site-specificity without chemical synthesis of noncanonical amino acids. Sortase A ligates a PEG-LPXTG substrate to an N-terminal Gly handle. Both approaches require engineering a recognition sequence into the peptide.
Click chemistry (CuAAC and SPAAC): Azide-alkyne cycloaddition is the most site-specific approach available, requiring incorporation of a noncanonical amino acid (azidohomoalanine, propargylglycine, or similar) by solid-phase synthesis. Copper-catalyzed CuAAC is fast and high-yielding but requires copper removal post-reaction. Strain-promoted SPAAC (using DBCO or BCN handles) is copper-free and better suited to sensitive peptides.
Random vs. site-specific: when each is appropriate
Random lysine modification is faster and cheaper, but non-specific modification can mask active binding domains and reduce potency in ways that are difficult to predict without structural data. Site-specific approaches, including engineered cysteines, noncanonical amino acids, and enzymatic handles, add synthetic steps but produce defined, characterizable conjugates with predictable activity profiles.
Practical method checklist:
Confirm peptide purity ≥95% by HPLC and intact mass before conjugation
Select PEG reagent: end group, MW, and architecture locked before ordering
Prepare peptide in degassed buffer (for thiol chemistry) or pH-adjusted buffer (for NHS chemistry)
Set reagent equivalents: typically 1.2–3 equivalents of PEG reagent per reactive site; excess drives yield but increases purification burden
React at controlled temperature (typically 4°C–25°C) for 1–4 hours with gentle mixing
Monitor by analytical LC at 30-minute intervals; quench NHS reactions with hydroxylamine or Tris; quench maleimide reactions by adding excess N-ethylmaleimide to cap unreacted thiols
Run intact mass immediately after quench to confirm conjugation before committing to purification
Common side reactions to monitor:
NHS-ester hydrolysis (competes with aminolysis; keep reaction time short)
Maleimide ring-opening at pH >7.5 (reduces thiol selectivity)
Disulfide scrambling in cysteine-containing peptides (use TCEP reduction immediately before reaction)
Multi-PEGylation on lysine-rich sequences (monitor by SEC and intact MS)
Pro Tip: Always run an analytical SEC trace alongside intact MS after conjugation. SEC catches aggregates and multi-PEGylated species that intact MS can miss when the mass envelope is broad from polydispersity.
Stepwise synthetic workflow from substrate to purified conjugate
A clean workflow prevents the most common failure modes: incomplete reaction, mixed positional isomers, and co-eluting impurities that inflate apparent purity.
Pre-reaction checks
Before starting conjugation, verify:
Peptide purity ≥95% by RP-HPLC; confirm identity by intact mass
No residual TFA (from HPLC purification) that could interfere with NHS chemistry; exchange into acetate or phosphate buffer
Free thiol content confirmed by Ellman’s assay if cysteine conjugation is planned
PEG reagent freshness: NHS-esters hydrolyze on storage; check lot date and store desiccated at −20°C
For guidance on peptide stock preparation and handling before conjugation, peptide reconstitution protocols provide useful calculation frameworks for research-grade compounds.
Reaction workflow
Dissolve peptide in reaction buffer at 1–10 mg/mL; degas for thiol reactions
Add PEG reagent as a concentrated stock in DMSO or DMF (keep organic solvent ≤10% v/v)
Mix gently at the target temperature; avoid vortexing for thiol reactions
Pull analytical aliquots at 30, 60, and 120 minutes; run analytical RP-HPLC to track conversion
Quench at target conversion (typically 70–90%); add quench reagent, mix 15 minutes, then proceed to workup
Dilute reaction mixture 5-fold with purification-compatible buffer before loading onto column
Purification strategies
The right purification method depends on PEG size and the hydrodynamic behavior of the conjugate:
Reverse-phase HPLC: Effective for PEG chains ≤5 kDa; larger PEGs compress the retention difference between conjugated and unconjugated species, making separation difficult
Size-exclusion chromatography (SEC): Separates by hydrodynamic radius; excellent for removing unreacted peptide from high-MW PEG conjugates; less effective for separating mono- from di-PEGylated species of similar size
Ion-exchange chromatography: Useful when the conjugation changes the charge state of the peptide; can resolve positional isomers on lysine-modified peptides
Affinity chromatography: Applicable when the peptide carries a purification tag (His, Strep) that survives conjugation
Post-purification characterization checklist
Intact LC-MS to confirm conjugate mass and PEG chain distribution
Analytical RP-HPLC for purity (UV 214 nm)
SEC for aggregation state and monomer fraction
Peptide mapping (LC-MS/MS after protease digest) to confirm attachment site
Protein/peptide concentration by UV or BCA assay
For long-term storage of purified conjugates, peptide stability and storage guidance covers buffer, temperature, and container recommendations relevant to PEGylated research compounds.
Key analytical techniques and release testing for PEGylated peptides
Analytics are where PEGylation projects most often stall. PEG polydispersity broadens mass envelopes, suppresses ionization in positive mode, and makes site assignment ambiguous without the right method design.
Core analytical methods
Intact LC-MS is the primary identity confirmation tool. For polydisperse PEG conjugates, negative ion mode with stepped collision energies improves charge-state resolution and enables confident mass assignment even when the PEG envelope spans several hundred daltons. Monodisperse PEG conjugates produce clean, interpretable spectra in either ion mode.
Peptide mapping (LC-MS/MS) after protease digestion (trypsin, Lys-C, or Asp-N depending on sequence) localizes the PEG attachment site by identifying the modified peptide fragment. This is the only method that unambiguously confirms site specificity for complex sequences.
SEC monitors aggregation, determines the monomer fraction, and provides a relative estimate of hydrodynamic radius. It does not confirm identity or attachment site.
SDS-PAGE with Coomassie or SYPRO Ruby staining gives a quick visual check of conjugate MW shift and can detect gross multi-PEGylation, but PEG’s anomalous migration makes it unreliable for precise MW determination.
RP-HPLC at 214 nm quantifies purity and tracks reaction conversion. For high-MW PEG conjugates, use a wide-pore C4 or C8 column rather than C18 to avoid irreversible retention.
Assay Purpose | Recommended Method | Key Limitation |
Identity confirmation | Intact LC-MS (negative ion mode for polydisperse PEG) | Broad envelope from polydispersity; requires deconvolution |
Attachment site mapping | Peptide mapping (LC-MS/MS) | Requires protease accessibility; incomplete digestion can obscure site |
Purity and conversion | RP-HPLC (C4/C8, 214 nm) | Poor resolution of mono- vs. di-PEGylated for high-MW PEG |
Aggregation state | SEC (calibrated with globular standards) | Hydrodynamic radius overestimates MW vs. globular standards |
Degree of PEGylation | SDS-PAGE + densitometry | Anomalous PEG migration; semi-quantitative only |
Polydispersity index | MALDI-TOF or GPC | MALDI suppression for large PEG; GPC requires calibration standards |
Minimum characterization data for preclinical reporting
To support reproducibility and peer-review readiness, report: intact mass with deconvolution method stated, RP-HPLC purity with column and gradient conditions, SEC monomer fraction, attachment site confirmed by peptide mapping, and PEG reagent lot details including stated MW and PDI.
Formulation, stability, and PK/ADME factors for PEGylated research compounds
PEGylation changes more than half-life. It reshapes the entire ADME profile, and formulation choices that work for the unmodified peptide often need revisiting after conjugation.
How PEG size and architecture alter clearance:
Peptides below the renal filtration threshold (~30 kDa hydrodynamic radius equivalent) are cleared renally. PEGylation pushes the conjugate above that threshold, shifting clearance toward hepatic and reticuloendothelial pathways. Branched PEGs achieve this threshold at lower nominal MW than linear chains because of their compact, high-density structure. Tissue distribution also shifts: PEGylated peptides show reduced volume of distribution and slower tissue penetration, which is advantageous for systemic targets but may reduce access to certain tissue compartments.
Formulation variables for stability:
Buffer and pH: Most PEGylated peptides are stable at pH 5–7. NHS-ester-linked conjugates (amide bond) are hydrolytically stable across this range; maleimide-thioether conjugates can undergo retro-Michael addition at pH >8 or in the presence of free thiols.
Excipients: Mannitol and sucrose stabilize against freeze-thaw aggregation. Polysorbate 20 (0.01–0.05%) reduces surface adsorption for dilute solutions.
Aggregation risk: PEGylated species can aggregate at high concentration, particularly branched conjugates. Monitor by SEC at each storage timepoint.
Preclinical PK assay considerations:
Standard peptide PK assays (total peptide by LC-MS/MS after acid precipitation) may underestimate PEGylated conjugate concentrations if the PEG chain interferes with extraction or ionization. A PEG-specific ELISA or an anti-PEG antibody-based capture assay run in parallel with a peptide-specific assay gives a more complete picture of conjugate integrity over time.
Storage stability monitoring:
Track purity by RP-HPLC and aggregation by SEC at defined intervals (T=0, 1 month, 3 months, 6 months at the intended storage temperature). A drop in monomer fraction by SEC before a drop in HPLC purity is an early warning of aggregation that HPLC alone will miss. Vial integrity is also a factor; vial seal integrity guidance is directly relevant to maintaining sample quality across storage timepoints.
Immunogenicity risks, anti-PEG antibodies, and mitigation strategies
The assumption that PEGylation is immunologically inert has been revised substantially over the past decade. Anti-PEG antibodies (APAs) are present in a measurable fraction of treatment-naive individuals, and repeat dosing in animal models can accelerate APA development and accelerated blood clearance (ABC) of subsequent doses.
Mechanisms and prevalence:
APAs can be pre-existing (from environmental PEG exposure in cosmetics, foods, and medications) or induced by PEGylated therapeutics. IgM APAs drive the ABC phenomenon: the first dose induces IgM, which opsonizes subsequent doses for rapid splenic clearance, collapsing the PK advantage PEGylation was designed to provide.
Factors that elevate immunogenicity risk:
High PEG surface density (multiple PEG chains per molecule)
Branched PEG architectures, which present a denser PEG surface
Repeated dosing in rodent models (ABC is particularly pronounced in rats and mice)
Certain linker chemistries that expose PEG epitopes more prominently
Particle-associated PEG (liposomes, nanoparticles) vs. soluble conjugates
Detection methods:
ELISA using PEG-coated plates with anti-IgM and anti-IgG secondary antibodies is the standard detection approach. Complement activation assays and accelerated blood clearance studies in rodents provide functional readouts of APA impact on PK.
Practical mitigation strategies:
Use the minimum PEG density that achieves the target PK profile
Consider monodisperse PEG or M-OEG alternatives, which may present a less repetitive epitope pattern
Space dosing intervals in animal studies to allow IgM titers to decline
Screen pre-dose serum samples for baseline APA titers in any repeat-dose study
Evaluate alternative polymers (polysarcosine, zwitterionic polymers, hydroxyethyl starch) when APA risk is a primary concern
Pro Tip: Always include a pre-dose APA screen in repeat-dose preclinical studies. A single APA-positive animal can confound your entire PK dataset if the ABC effect is not identified and accounted for in the analysis.

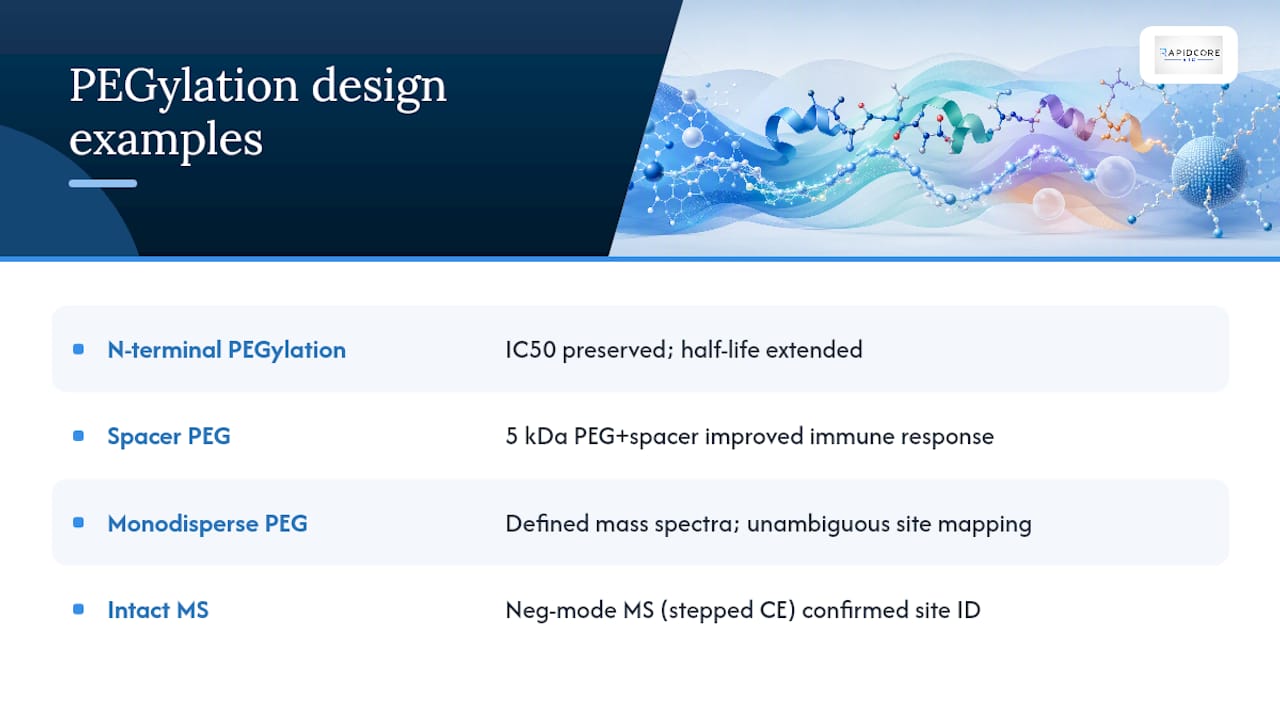

Selected therapeutic and research examples that illustrate design choices
The literature on PEGylated peptides is rich with cases where small design changes produced large functional differences. Three examples are worth examining closely.
N-terminal PEGylation with preserved activity:
PEG-peptide conjugate studies document cases where N-terminal attachment of a linear PEG chain, away from the C-terminal binding region, preserved IC50 values close to those of the unmodified peptide while extending half-life substantially. The key was that the N-terminus was remote from the pharmacophore. When the same peptide was modified at a lysine residue adjacent to the binding loop, potency dropped significantly, confirming that the site, not the PEG itself, was the primary determinant of activity retention.
Spacer-conjugated PEG as a spatial modulator:
A study on bifunctional peptides in an autoimmune disease model showed that site- and size-controlled PEGylation with a 5 kDa PEG attached via a defined spacer acted as a spatial modulator of peptide-cell interfaces, improving immunoregulatory behavior in vivo. The PEG was not simply extending half-life; it was physically positioning the peptide relative to the cell surface in a way that enhanced the desired immune response. This is a conceptually important result: PEG can be a functional design element, not just a pharmacokinetic patch.
Monodisperse PEG and analytical clarity:
Comparative studies of monodisperse vs. polydisperse PEGylation show that monodisperse oligoethylene glycol polyamides produce conjugates with defined mass spectra, enabling unambiguous site assignment and batch comparison. Polydisperse conjugates of equivalent nominal MW showed broader mass envelopes that complicated both site mapping and potency correlation. For research programs where characterization rigor is a priority, the analytical argument for monodisperse PEG is strong.
Intact MS for polydisperse conjugates:
A 2024 RSC Advances paper demonstrated that negative ion mode MS with stepped collision energies resolved the mass envelope of a PEG10-modified glycosulfopeptide P-selectin antagonist well enough to confirm site identity and quantify conjugate integrity. The method overcame the ionization suppression and charge-state overlap that make positive-mode analysis of polydisperse PEG conjugates unreliable.
Practical recommendations, common pitfalls, and research-grade sourcing
The gap between a well-designed PEGylation experiment and a failed one is almost always traceable to one of a small set of avoidable mistakes. Here is the pre-experiment checklist and the pitfalls that most often derail projects.
Pre-experiment checklist:
Confirm peptide identity and purity (≥95% by HPLC, intact mass confirmed) before any conjugation attempt
Verify PEG reagent: check MW, PDI, end-group identity, and lot freshness; store desiccated at −20°C
Map the attachment site relative to the binding interface; document the rationale for site selection
Define the analytical plan before synthesis: which assays, in what order, with what acceptance criteria
Prepare reference standards: unconjugated peptide and, if available, a characterized reference conjugate for comparison
Plan the purification strategy based on PEG MW and expected hydrodynamic behavior before starting the reaction
Common pitfalls:
Ignoring attachment-site effects: Assuming any available lysine is an acceptable conjugation point without checking its proximity to the active site is the single most common cause of potency loss. Site-specific chemistries exist precisely to avoid this, and the investment in engineering a cysteine or noncanonical amino acid handle is almost always worth it.
Inadequate polydispersity characterization: Reporting only nominal PEG MW without PDI or intact mass data makes batch comparison impossible and obscures the source of variability between experiments.
Misattributing activity loss to degradation: A drop in potency after PEGylation is often blamed on peptide degradation when the real cause is steric blockade at the binding site. Run a de-PEGylation experiment (cleavable linker or reductive cleavage of disulfide) to distinguish the two.
Skipping SEC post-purification: RP-HPLC purity can look excellent while SEC reveals a significant aggregated fraction, particularly for branched PEG conjugates at higher concentrations.
Using degraded NHS-ester reagents: Hydrolyzed NHS-esters give low yields and mixed products. Always check reagent freshness and run a small test reaction before committing the full peptide batch.
A note on sourcing research-grade substrates:
The quality of the starting peptide directly determines the quality of the conjugate. Impurities in the peptide substrate carry through conjugation and purification, and some co-elute with the target conjugate under standard RP-HPLC conditions. Rapidcorebio provides research-grade peptides with batch-specific COA verification by HPLC and mass spectrometry, giving researchers a documented, traceable starting point for PEGylation studies. For labs building a QC-conscious workflow, COA verification details and purity documentation are available for review before procurement.
[
Pro Tip: When writing up your PEGylation experiment for publication or internal reporting, include: PEG reagent lot number and stated PDI, attachment site confirmed by peptide mapping, RP-HPLC purity with column and gradient details, intact mass with deconvolution software named, and SEC monomer fraction. Reviewers increasingly expect this level of characterization detail, and having it documented from the start saves significant revision time.
Conclusion and next steps for researchers planning PEGylation projects
PEGylated peptides are defined by three variables that must be resolved in sequence: attachment site, PEG architecture, and linker chemistry. Get the site wrong, and no amount of PEG optimization recovers potency. Get the architecture wrong, and characterization becomes intractable. Get the linker wrong, and stability or activity suffers in ways that are hard to diagnose after the fact.
The primary trade-offs to manage are steric shielding vs. binding potency, polydispersity vs. characterization clarity, and immunogenicity reduction vs. the risk of anti-PEG antibody induction with repeat dosing. None of these trade-offs resolves itself; each requires deliberate design choices backed by analytical data.
Recommended next steps before starting a PEGylation project:
Finalize attachment site selection based on structural or activity data
Select PEG MW, architecture (linear vs. branched), and end-group chemistry
Define the full analytical plan: intact LC-MS, peptide mapping, SEC, and RP-HPLC at minimum
Validate conjugation at small scale before committing to preparative synthesis
Plan immunogenicity monitoring if repeat-dose animal studies are anticipated
This article is intended for research purposes only. All compounds described are research-grade materials. Nothing in this guide constitutes medical, clinical, or dosing advice. Researchers should consult applicable institutional and regulatory guidelines before initiating any in vivo work.
For additional QC resources, the Rapidcorebio research handbook covers technical terminology and analytical concepts referenced throughout this guide.
The field is moving faster than most labs’ analytics can keep up
The shift toward site-specific and monodisperse PEGylation strategies is real and well-supported by the literature. What the field has been slower to acknowledge is that the analytical infrastructure required to characterize these newer conjugates properly is substantially more demanding than what most labs built around first-generation random PEGylation.
Negative ion mode intact MS, stepped collision energy methods, and peptide mapping with confirmed site assignment are not optional extras for site-specific conjugates. They are the minimum required to know whether the chemistry actually worked as designed. A lab that invests in site-specific synthesis but characterizes the product with only RP-HPLC purity and a nominal MW check is not getting the benefit of the approach.
The other underappreciated issue is immunogenicity monitoring. Anti-PEG antibody screening is still treated as an afterthought in many preclinical programs, added only after an unexplained PK collapse. Running baseline APA screens and including functional ABC assays from the start of a repeat-dose study costs relatively little and prevents the kind of data loss that forces a full repeat experiment.
If I were designing a PEGylation research program today, I would prioritize three things: monodisperse or M-OEG reagents for any project where characterization rigor matters, a validated intact MS method before the first conjugation reaction, and a pre-dose APA screen built into every animal study protocol from day one.
Rapidcorebio supports your PEGylation research from substrate to COA
Starting a PEGylation study with an unverified peptide substrate is a straightforward way to lose weeks of work to a problem that existed before you ran a single reaction. Rapidcorebio supplies research-grade peptides with batch-specific analytical documentation, including HPLC chromatograms and mass spectrometry confirmation, so you know exactly what you are conjugating before the PEG reagent goes in.
Every batch ships with a COA that documents purity, identity, and lot-specific analytical data. For labs that need to trace starting material quality back through a PEGylation workflow, that documentation is the foundation of a reproducible experiment. Technical support is available for researchers working through conjugation design questions or analytical method selection.
Review COA verification details for your next peptide order, or browse research-grade peptide options to find verified substrates for your PEGylation project.
Sources
The following peer-reviewed sources form the analytical and methodological backbone of this guide. Consulting their methods sections directly will give you the experimental parameters and analytical setups needed to adapt these approaches to your own research.
This article is general information, not a substitute for advice from a qualified doctor. Consult a qualified healthcare professional about your own circumstances before acting on anything here.
Recommended
Comments
