Peptide Endotoxin Testing: What Researchers Need to Know
- 1 day ago
- 13 min read
TL;DR:
Peptide endotoxin testing measures lipopolysaccharide contamination and requires specific numeric results for reliable biological use. Many COAs omit endotoxin data, which indicates the test was likely not performed, posing risks in sensitive assays such as immune or in vivo studies. Ensuring batch-specific, third-party verified endotoxin results below research thresholds safeguards experimental validity and confirms peptide quality.
Peptide endotoxin testing measures lipopolysaccharide (LPS) contamination in research-grade peptide preparations, and for most cell-culture work, a COA value below the widely used research threshold for general cell culture is the practical benchmark you should request before running any biological assay. If your COA shows only “pass” with no numeric value and no method listed, treat that as a documentation gap, not a clean bill of health. The absence of endotoxin data on a COA almost never means the sample passed — it almost always means the test was never performed.
Three things to do immediately when you receive a COA:
Confirm a numeric EU/mg value is present (not just “pass/fail”)
Identify the method used: gel-clot, kinetic chromogenic, turbidimetric, or recombinant Factor C (rFC)
Note the testing lab’s name and accreditation status
Quick benchmarks by application:
General cell culture: <1 EU/mg is the widely used research benchmark
Immune assays, NF-κB reporters, cytokine-release studies: <0.1 EU/mg is required
In vivo rodent dosing: translate EU/mg to per-dose EU and compare to your protocol’s tolerance
Table of Contents
Why endotoxins are a separate QC problem from chemical purity
How peptides pick up endotoxin contamination along the supply chain
LAL vs. rFC: how the main endotoxin detection methods compare
Making COA numbers actionable: MVD, spike recovery, and dose translation
A practical QC checklist for peptide manufacturers and receiving labs
What authoritative sources and industry benchmarks actually recommend
Why transparent endotoxin data is non-negotiable for research-grade peptides
Rapidcorebio’s batch-verified peptides give you the endotoxin data you need
Why endotoxins are a separate QC problem from chemical purity
HPLC tells you what percentage of your sample is the target peptide. It says nothing about what else is in the vial. Endotoxins, specifically lipopolysaccharides (LPS) shed from the outer membrane of Gram-negative bacteria, are chemically distinct from peptide impurities and are completely invisible to chromatographic purity analysis. HPLC measures chemical purity; endotoxin and sterility are a separate QC layer that many COAs skip entirely.
LPS is heat-stable and highly persistent. Standard autoclaving at 121°C kills bacteria but does not destroy endotoxin. Depyrogenation requires dry heat at 250°C for at least 30 minutes, which is why USP <85> and its companion sterility chapter (USP <71>) are treated as two distinct QC axes: one addresses microbial viability, the other addresses the heat-stable toxin that survives even after sterilization.
The biological potency of LPS is the real concern. Endotoxin activates the TLR4/NF-κB signaling pathway at concentrations as low as 0.1 EU/mL, which is well within the range present in poorly controlled research peptides. Macrophage activation assays, cytokine-release studies, and NF-κB reporter systems are particularly vulnerable — a contaminated peptide can produce a robust “positive” signal that has nothing to do with the compound’s actual biology.
Affected assay types include:
Cytokine release (IL-6, TNF-α, IL-1β)
NF-κB luciferase reporter assays
Macrophage polarization studies
Toll-like receptor pathway screens
Any in vivo model where pyrogenic response would confound readouts
Pro Tip: If a COA is missing an endotoxin line entirely, do not interpret that as evidence of a clean product. Request batch-specific endotoxin data explicitly, and if the supplier cannot provide it, factor that gap into your risk assessment before running sensitive biological assays.
How peptides pick up endotoxin contamination along the supply chain
Endotoxin contamination is not a single-event problem. It accumulates across multiple steps, and understanding where it enters the workflow is the first step toward controlling it.
Upstream: synthesis and purification
Synthesis water and buffers — Water used in solid-phase peptide synthesis (SPPS) is the single highest-volume reagent in the process. If it is not prepared to Water for Injection (WFI) or equivalent endotoxin-free standard, LPS enters at the very first step.
Resins, reagents, and coupling agents — Fmoc amino acids, coupling reagents (HBTU, HATU), and deprotection reagents sourced from suppliers without endotoxin certificates introduce contamination that persists through downstream processing.
Purification equipment — HPLC columns, frits, tubing, and collection vessels that have not been depyrogenated can leach LPS into purified fractions even after the synthesis is clean.
Cross-contamination between batches — Shared equipment without validated cleaning procedures transfers endotoxin from a contaminated batch to a subsequent one.
Downstream: lyophilization, packaging, and handling
Lyophilization chambers — Freeze-dryers are notoriously difficult to depyrogenate. Residual LPS on shelf surfaces or in the chamber atmosphere can contaminate the product during drying.
Vial and stopper materials — Glass vials and rubber stoppers must be depyrogenated or certified endotoxin-free. Standard lab glassware is not.
Shipping and storage — Temperature excursions during transit do not destroy endotoxin. A vial that warms up and cools down repeatedly does not lose its LPS burden.
Receiving-lab reconstitution — Using non-endotoxin-free water or non-depyrogenated pipette tips at the point of reconstitution adds contamination after the product leaves the manufacturer.
Control points to audit in your vendor or in-house workflow:
Water system certification (WFI or equivalent, with endotoxin monitoring records)
Reagent certificates of analysis including endotoxin specification
Equipment cleaning and depyrogenation logs
Lyophilizer validation records
Vial and stopper certification
Receiving-lab consumable sourcing (endotoxin-free tips, tubes, water)

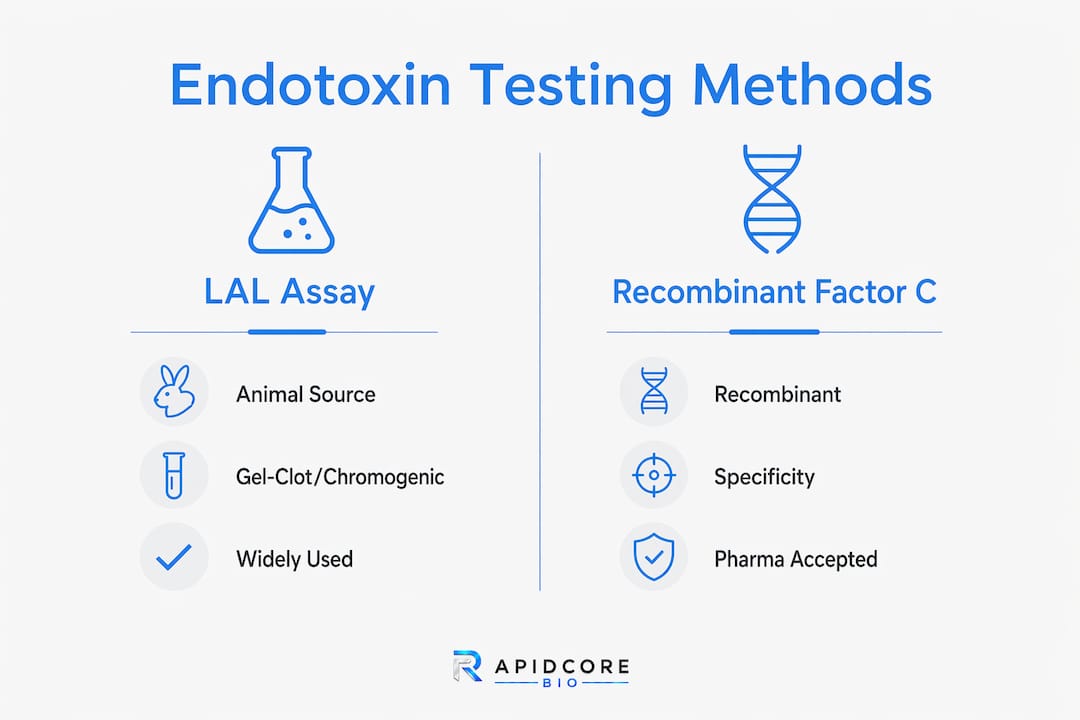

LAL vs. rFC: how the main endotoxin detection methods compare
The two principal methods for endotoxin detection in peptide work are the Limulus Amebocyte Lysate (LAL) assay and recombinant Factor C (rFC). Both detect LPS, but they differ in origin, specificity, and practical performance.
How LAL works
LAL is derived from the blood cells (amebocytes) of the horseshoe crab (Limulus polyphemus or Tachypleus tridentatus). When LPS contacts the lysate, it triggers a serine protease cascade that ends in clot formation or chromophore release, depending on the format. USP <85> describes three LAL formats:
Gel-clot — qualitative or semi-quantitative; detects clot formation at a defined sensitivity threshold; useful as a pass/fail screen and as the compendial referee method in case of dispute
Kinetic turbidimetric — quantitative; measures the rate of turbidity development; generates EU/mg values suitable for COA reporting
Kinetic chromogenic — quantitative; measures color release from a synthetic chromogenic substrate; detection limits reach 0.005–0.01 EU/mL in most commercial assays, making it the most common format on peptide COAs
How rFC works
Recombinant Factor C uses only the first enzyme in the LAL cascade, Factor C, produced recombinantly rather than harvested from horseshoe crabs. Because it contains no Factor G (the glucan-sensitive component of whole LAL lysate), rFC eliminates β-glucan false positives that can occur with traditional LAL. The shift toward rFC is driven by both analytical specificity and ethical concerns over horseshoe crab harvesting; rFC is now accepted in major pharmacopeias.
Side-by-side comparison
Dimension | LAL (gel-clot / turbidimetric / chromogenic) | Recombinant Factor C (rFC) |
Source | Animal-derived (horseshoe crab amebocytes) | Recombinant (no animal material) |
Sensitivity / dynamic range | 0.005–0.01 EU/mL (kinetic formats); gel-clot is qualitative | Matches LAL sensitivity; quantitative |
β-glucan interference | Yes — Factor G in whole lysate reacts with β-glucans | No — Factor G absent; LPS-specific |
Matrix interference (surfactants, salts, cationic peptides) | Moderate to high; requires spike-recovery validation | Similar; still requires spike-recovery |
Regulatory / pharmacopeial acceptance | USP <85> compendial standard; gel-clot is referee method | Accepted in major pharmacopeias alongside LAL |
Quantitative COA reporting | Kinetic turbidimetric and kinetic chromogenic only | Yes |
Speed and cost | Gel-clot: low cost, slower; kinetic: faster, higher cost | Comparable to kinetic LAL; reagent cost slightly higher |
Best use case | In-house screening (gel-clot) or release testing (kinetic) | Matrices with fungal components; ethical sourcing preference |
Pro Tip: For peptide matrices that contain β-glucan-based excipients or are derived from fermentation processes, rFC is the cleaner choice — it removes an entire interference pathway without sacrificing sensitivity.
Making COA numbers actionable: MVD, spike recovery, and dose translation
A numeric EU/mg value on a COA is only as trustworthy as the controls that validated it. Here is what a defensible endotoxin result actually requires, and how to translate it into experimental exposure.
Sample preparation essentials
Peptide samples must be diluted in endotoxin-free water (Water for BET, as specified in USP <85>) before testing. Interfering buffers — phosphate, HEPES, DMSO, acetonitrile, and many common reconstitution solvents — can inhibit the LAL cascade and produce false-negative results. A dilution series is run to identify the minimum dilution at which interference is absent, which defines the Maximum Valid Dilution (MVD).
Peptides also adsorb nonspecifically to glass and plastic surfaces, which can reduce the apparent sample concentration during testing. Choosing low-binding vial materials and validating any surfactant additions (such as low-concentration Tween or PEG) via spike-and-recovery helps preserve sample integrity, though surfactants themselves must be validated because they can alter assay behavior.
Controls that validate the result
Positive product control (spike): Known endotoxin is added to the sample matrix. Recovery must fall within 50–200% of the added amount for the result to be valid.
Negative control: Endotoxin-free water run alongside the sample confirms no background contamination from reagents or equipment.
MVD determination: Confirms the dilution used does not exceed the maximum at which the endotoxin limit can still be detected.
Translating EU/mg to assay exposure
The calculation is straightforward. If a peptide COA reports 0.8 EU/mg and your assay uses 10 µg/mL of peptide in a 1 mL well:
Endotoxin exposure = (EU/mg) × (mg/mL in assay) 0.8 EU/mg × 0.01 mg/mL = 0.008 EU/mL
That result sits well below the 0.1 EU/mL threshold at which LPS begins to affect immune readouts. If your working concentration were 100 µg/mL, the exposure would be 0.08 EU/mL, which is borderline for sensitive immune assays and warrants a polymyxin B neutralization control.
What a complete COA must include
COA Element | Why It Matters |
Numeric EU/mg or EU/mL result | Pass/fail alone is insufficient for sensitive assays |
Testing method (gel-clot, kinetic chromogenic, rFC) | Determines sensitivity and interference profile |
Acceptance specification | Confirms what limit the batch was tested against |
Testing lab name and accreditation | Validates the result’s chain of custody |
Batch/lot number | Links the result to the specific material you received |
Pro Tip: Run the EU/mg-to-assay-exposure calculation before you design your experiment, not after you see an unexpected cytokine spike. A 30-second calculation at the COA stage can save days of troubleshooting.
Interferences and troubleshooting for peptide matrices
Peptide samples are among the more challenging matrices for endotoxin assays. Several physical and chemical properties of peptides directly interfere with the LAL cascade, and recognizing the failure modes is what separates a validated result from a number you should not trust.
Common interference mechanisms
Cationic peptide charge sequestration — Positively charged peptides (arginine-rich, lysine-rich sequences) bind LPS electrostatically, masking it from the LAL reagent and producing falsely low readings.
pH and salt inhibition — The LAL cascade is optimized for pH 6.0–8.0. Acidic or basic peptide solutions, and high-ionic-strength buffers, suppress the enzymatic reaction.
Surfactant interference — Detergents used in peptide solubilization (Tween-20, SDS) disrupt the LAL clotting reaction at concentrations above their validated threshold.
β-glucan false positives in LAL — Fungal-derived excipients or contaminated reagents containing β-glucans activate Factor G in whole LAL lysate, producing a false-positive endotoxin signal. rFC eliminates this pathway entirely.
Peptide adsorption to surfaces — Loss of sample to vial walls reduces effective concentration and can make a contaminated sample appear cleaner than it is.
Troubleshooting flow
Dilution curve anomalies — If the dose-response curve is non-linear or the slope deviates from the standard, interference is present. Increase dilution and retest.
Failed spike recovery — Recovery outside 50–200% invalidates the run. Identify the interfering component, adjust dilution or buffer, and repeat.
Conflicting gel-clot vs. kinetic results — A positive gel-clot with a lower kinetic value often indicates matrix inhibition in the kinetic format. The gel-clot result takes precedence under USP <85> in cases of dispute.
Suspected false positive — Switch to rFC to rule out β-glucan contribution. If the rFC result is negative and LAL is positive, β-glucan interference is the likely explanation.
Pro Tip: For cationic peptides specifically, a heat-treatment step (boiling the sample briefly to denature peptide-LPS complexes) followed by retesting can reveal masked endotoxin. Always pair this with a spike-recovery control to confirm the treatment did not destroy the LPS signal.
A practical QC checklist for peptide manufacturers and receiving labs
Endotoxin control is not a single test at the end of the process. It is a policy that runs from water system qualification through final COA review. The checklist below gives you a minimal, implementable framework.
For manufacturers: in-process controls
Water system: Maintain WFI or equivalent with documented endotoxin monitoring (target <0.25 EU/mL for process water).
Reagent certificates: Require endotoxin specifications on all synthesis reagents, resins, and solvents.
Equipment cleaning: Validate depyrogenation procedures for all product-contact surfaces (glassware, tubing, lyophilizer shelves).
Environmental monitoring: Periodic endotoxin swab testing of critical surfaces in the fill/finish area.
Personnel hygiene: Gloves, gowning, and no bare-hand contact with product-contact surfaces.
For receiving labs: incoming-lot checks
Review the COA for all five required elements (numeric EU/mg, method, specification, lab identity, lot number).
Quarantine the lot pending COA review; do not use in sensitive assays until endotoxin status is confirmed.
Retain a sample aliquot for potential third-party verification.
If the COA is missing endotoxin data, contact the supplier before use — not after a failed experiment.
For high-sensitivity applications (immune assays, animal dosing), request the spike-recovery and MVD data from the testing lab, not just the final EU/mg number.
When to trigger additional testing or remediation
COA is missing endotoxin data entirely
EU/mg value exceeds the threshold for your planned application
Spike-recovery data is absent or outside 50–200%
Planned use involves immune assays, NF-κB reporters, or in vivo dosing
Any lot change from a supplier, even within the same product line
Sample QC policy template
Parameter | Specification | Method | Acceptance Limit | Recordkeeping |
Identity | Correct peptide sequence | Mass spectrometry | Matches target MW ± 0.1 Da | Batch COA, retained |
Chemical purity | ≥90% (or per protocol) | HPLC | Per application | Batch COA, retained |
Endotoxin | EU/mg | Kinetic chromogenic LAL or rFC | <1 EU/mg (general); <0.1 EU/mg (immune assays) | Batch COA + third-party verification |
Sterility | Absence of viable organisms | USP <71> | No growth | Batch COA, retained |
Pro Tip: Assign one person in the lab (PI, lab manager, or QC contact) as the endotoxin decision owner. When that role is undefined, COA review falls through the cracks and the first sign of a problem is a contaminated experiment, not a flagged lot.
What authoritative sources and industry benchmarks actually recommend
The compendial anchor for endotoxin testing in the United States is USP <85>, which defines the three LAL formats (gel-clot, turbidimetric, chromogenic) and the validation requirements for each. For research-grade peptides not subject to pharmaceutical release specifications, USP <85> still provides the methodological framework that credible third-party labs use.
Consensus benchmarks
<1 EU/mg for general cell-culture applications — the most widely cited research-grade threshold
<0.1 EU/mg for immune assays, cytokine studies, and NF-κB pathway work
**Translate to EU/mL using your working concentration before deciding whether a lot is fit for purpose (see the calculation in the COA interpretation section above)
LPS can affect immune readouts at 0.1 EU/mL — a concentration easily reached with a peptide at 1 EU/mg used at 100 µg/mL. That arithmetic is why the benchmark matters and why a “pass” without a number is not enough.
Documentation expectations from credible suppliers
A complete COA should include the numeric EU result, the testing method, the lab’s identity and accreditation, and the batch/lot number. Anything less leaves you unable to assess whether the result is valid for your specific application.
Supplier due-diligence checklist
Batch-specific COA (not a generic product-level certificate)
Endotoxin result with numeric EU/mg and named method
Third-party testing option or documentation of independent lab identity
Chain-of-custody documentation from synthesis to shipment
Transparency about whether testing was performed in-house or by an accredited external lab
The LAL assay remains the industry standard, and rFC is increasingly recognized alongside it in major pharmacopeias. When a supplier cannot tell you which method was used, that is a red flag of the same magnitude as a missing numeric result.
Key Takeaways
Endotoxin testing is a mandatory, separate QC axis from HPLC purity — a COA without a numeric EU/mg value and a named method is insufficient for any biological application.
Point | Details |
Use the right benchmark | Apply <1 EU/mg for general cell culture; drop to <0.1 EU/mg for immune assays and NF-κB work. |
Demand a complete COA | Require numeric EU/mg, method name, acceptance limit, lab identity, and lot number — not just “pass.” |
Validate with spike-recovery | Spike-recovery within 50–200% is the control that confirms your result is real, not masked by matrix interference. |
Know your exposure | Multiply EU/mg by your working concentration (mg/mL) to calculate actual EU/mL in the assay before you run it. |
Rapidcorebio provides batch-specific COAs | Rapidcorebio supplies batch-verified research peptides with third-party testing documentation, giving you the numeric EU data you need to make informed QC decisions. |
Why transparent endotoxin data is non-negotiable for research-grade peptides
The conventional wisdom in peptide sourcing focuses almost entirely on chemical purity — HPLC percentage, mass spec confirmation, and sequence identity. Those are necessary. They are not sufficient. The part of the QC story that gets quietly skipped is endotoxin, and the consequences show up not as a failed purity test but as a confounded experiment that takes weeks to diagnose.
What strikes me most about endotoxin contamination is how asymmetric the risk is. A peptide at 98% HPLC purity with 5 EU/mg looks clean on paper. Run it in a macrophage activation assay at 50 µg/mL and you have delivered 0.25 EU/mL of LPS to your cells — well above the threshold for TLR4 activation. The “biological activity” you observe may have nothing to do with the peptide. That is not a minor methodological footnote. That is a result you cannot publish.
The shift toward rFC is worth watching closely. Beyond the analytical advantage of eliminating β-glucan false positives, it reflects a broader maturation in how the field thinks about assay specificity. A method that is more specific to LPS and less dependent on animal-derived reagents is a better scientific tool, full stop. The fact that it also addresses ethical concerns about horseshoe crab harvesting is a meaningful secondary benefit, not the primary driver.
For researchers and manufacturers alike, the practical takeaway is this: endotoxin documentation should be as routine as the HPLC chromatogram. If your supplier treats it as optional, that tells you something important about how they think about quality. Rapidcorebio’s commitment to batch-specific third-party testing and transparent COA access reflects what we believe the standard should be across the industry.
All peptides described in this article are research compounds intended for laboratory use only. They are not approved for human or veterinary administration. Confirm current regulatory requirements with the appropriate primary source or a qualified professional for your specific application.
Rapidcorebio’s batch-verified peptides give you the endotoxin data you need
Researchers who have read this far know exactly what to ask for: a numeric EU/mg value, a named testing method, spike-recovery confirmation, and a lab identity on the COA. The problem is that most peptide suppliers treat endotoxin documentation as optional. Rapidcorebio does not.
Every batch of research-grade peptides from Rapidcorebio comes with a batch-specific COA that includes third-party analytical verification. You can review COA documentation directly on the site before you order, so you know the endotoxin status of the specific lot you are receiving, not a generic product-level certificate. For researchers who need the full technical context, the Rapidcorebio research handbook covers assay terminology, QC definitions, and peptide-specific testing concepts in one place. If you are ready to source peptides with the documentation your experiments actually require, browse the verified research peptide catalog and check the COA for your compound before checkout.
