Cell-Penetrating Peptides for Researchers: Design and Best Practices
- 1 hour ago
- 17 min read
Cell-penetrating peptides (CPPs) are short, typically cationic or amphipathic sequences of 5–30 amino acids that cross intact biological membranes and carry molecular cargo into the cytosol or nucleus. Their primary research utility is the intracellular delivery of otherwise membrane-impermeant molecules, including proteins, nucleic acids, and small-molecule therapeutics, without requiring viral vectors or physical disruption of the cell membrane.
Canonical examples researchers encounter most frequently include:
Cationic CPPs: HIV-1 TAT peptide (TAT, residues 47–57: YGRKKRRQRRR), polyarginine variants R8 and R9, and penetratin (Antennapedia homeodomain, residues 43–58: RQIKIWFQNRRMKWKK)
Amphipathic and chimeric CPPs: Transportan (a galanin/mastoparan chimera) and p28 (a 28-residue fragment of the bacterial protein azurin with tumor-targeting properties)
Membrane translocation proceeds through two primary pathways: energy-dependent endocytosis and energy-independent direct translocation. Which pathway dominates depends on peptide physicochemical properties, cargo size and charge, local concentration, and cell-surface composition, particularly the density of heparan sulfate proteoglycans.
Table of Contents
How should researchers approach CPP conjugation and cargo selection?
What are the main applications of cell-penetrating peptides in research and therapy?
What are the main limitations and safety concerns for CPP research?
How should researchers design and report CPP uptake experiments?
What should researchers require when sourcing research-grade CPPs?
Where is the CPP field heading, and what are the near-term research priorities?
The reproducibility problem is the real bottleneck in CPP research
Rapidcorebio supports research-grade CPP studies with verified peptides

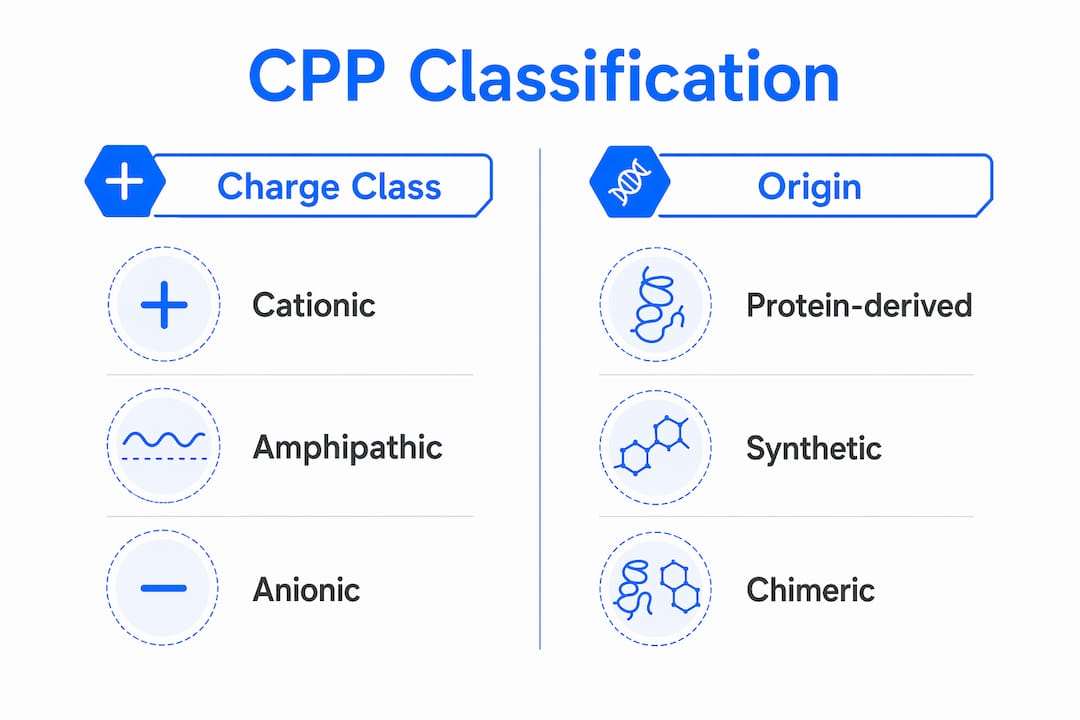

How are cell-penetrating peptides classified?
CPPs are classified by both charge character and biological origin, and the distinction matters for experimental design because each class carries different cargo preferences, concentration requirements, and toxicity profiles.
Cationic, amphipathic, and anionic classes
Cationic CPPs derive their membrane activity primarily from arginine and lysine residues. Guanidinium side chains on arginine form bidentate hydrogen bonds with phospholipid head groups and heparan sulfates, which is why arginine-rich sequences generally outperform lysine-rich ones at equivalent charge density. TAT (YGRKKRRQRRR) and the polyarginine series R8/R9 are the most widely used cationic CPPs in intracellular delivery research.
Amphipathic CPPs carry both hydrophobic and hydrophilic domains arranged either in primary sequence (class A, such as transportan) or as a secondary structure-dependent helix (class B). Penetratin adopts an alpha-helical conformation upon membrane contact, and this structural transition is central to its translocation mechanism. Amphipathic sequences are particularly suited to protein and peptide cargo because the hydrophobic face can interact with cargo hydrophobic patches, stabilizing the complex.
Anionic CPPs are a smaller and less-studied class, typically requiring co-factors such as divalent cations or specific membrane lipid compositions for efficient uptake. They are not covered in depth here because their experimental use remains limited relative to cationic and amphipathic variants.
By origin, CPPs are categorized as protein-derived (TAT from HIV-1 transactivator protein, penetratin from Drosophila Antennapedia), chimeric (transportan, assembled from galanin and mastoparan fragments), or fully synthetic (polyarginine, designed sequences). The classification and design rules for each class inform which modifications improve stability and which risk lytic activity.
Representative CPP sequences, properties, and cargo suitability
Class | Sequence motif / features | Representative peptide | Typical cargo |
Cationic | Arg/Lys-rich, net charge +8 to +12 | TAT (YGRKKRRQRRR) | Small proteins, oligonucleotides, nanoparticles |
Cationic polyarginine | Homopolymer of Arg, 8–9 residues | R8 / R9 | siRNA complexes, small molecules |
Amphipathic (primary) | Hydrophobic + cationic domains in sequence | Transportan (galanin-mastoparan chimera) | Peptides, proteins, PNA |
Amphipathic (secondary) | Helix-dependent amphipathicity | Penetratin (RQIKIWFQNRRMKWKK) | Oligonucleotides, peptide analogs |
Protein-derived / tumor-targeting | Hydrophobic core, anionic character | p28 (azurin fragment) | Direct antitumor activity; protein cargo |
Synthetic / designed | Guanidinium-patterned, backbone-modified | Cyclic polyarginine variants | Cytosolic proteins, genome-editing tools |
A practical design note: strongly hydrophobic amphipathic sequences carry a real risk of membrane lysis at concentrations above roughly 10–20 µM in many cell lines. Transportan in particular shows concentration-dependent cytotoxicity that must be characterized before interpreting delivery data. Cationic CPPs such as R8 are generally better tolerated at higher concentrations, though they are more susceptible to proteolytic degradation in serum.
What mechanisms do CPPs use to cross cell membranes?
Two broad pathways account for CPP membrane translocation: endocytosis and direct translocation. Neither is universal, and the dominant route shifts with peptide concentration, cargo, and cell type.
Endocytic pathways
Endocytosis is the dominant uptake mechanism for most CPPs at physiological concentrations and in the presence of cargo. Sub-mechanisms include macropinocytosis (particularly relevant for TAT and arginine-rich sequences at higher concentrations), clathrin-mediated endocytosis, and caveolin-mediated endocytosis. The critical problem with endocytic uptake is that cargo frequently remains trapped in endosomes and is ultimately degraded in lysosomes without reaching the cytosol. This is not a minor caveat: endosomal entrapment is one of the primary reasons CPP-delivered cargos fail to produce functional intracellular effects even when total cellular uptake appears high by fluorescence microscopy.
Direct translocation
At higher peptide concentrations or with specific sequence designs, CPPs can cross membranes without endosomal intermediates through mechanisms including inverted micelle formation, transient pore formation, and the “carpet model” of membrane disruption. Direct translocation produces cytosolic access more efficiently but is also more likely to cause membrane perturbation at concentrations approaching lytic thresholds. Heparan sulfate proteoglycans at the cell surface modulate both pathways: they concentrate cationic CPPs at the membrane and facilitate initial binding, though membrane composition varies substantially across cell types, which is why uptake efficiency is cell-type specific rather than universal.
Key mechanistic insight: The same CPP sequence can shift from predominantly endocytic to predominantly direct translocation as concentration increases, and this shift is not always visible in standard fluorescence uptake assays. Researchers who observe high total cellular fluorescence should not assume cytosolic delivery without orthogonal confirmation.
Experimental readouts that distinguish uptake pathways
Readout | What it measures | Pathway it distinguishes |
Temperature sensitivity | Energy dependence of uptake | Endocytic (reduced at 4°C) vs direct (less affected) |
ATP depletion (metabolic inhibitors) | Metabolic energy requirement | Endocytic (reduced) vs direct (maintained) |
Endocytic inhibitors (chlorpromazine, filipin, amiloride) | Specific endocytic pathway involvement | Clathrin, caveolin, macropinocytosis |
Colocalization with endosomal markers (EEA1, LAMP1) | Endosomal vs cytosolic localization | Endosomal entrapment vs escape |
Protein complementation assay (CAPA) | Cytosolic access specifically | Functional cytosolic delivery |
Protease protection assay | Cytosolic vs luminal localization | Endosomal entrapment |
Variables that shift mechanism choice include peptide charge density, guanidinium patterning, amphipathicity, sequence length, cargo size and charge, local peptide concentration, temperature, and cell-surface heparan sulfate density. Researchers designing uptake studies should treat these variables as experimental parameters to control, not background conditions to assume constant.
How should researchers approach CPP conjugation and cargo selection?
Covalent linkage generally provides better in vivo pharmacokinetic consistency and stability in biological fluids, while non-covalent complexation is synthetically simpler but less stable under serum conditions. The choice between them is not merely technical: it directly affects reproducibility, and documenting the conjugation strategy in full is a minimum requirement for any publication claiming intracellular delivery.
Common conjugation chemistries
Maleimide-thiol coupling: Preferred for site-specific covalent attachment to cysteine-containing proteins or thiol-modified oligonucleotides. Produces stable thioether bonds under physiological conditions; not reversible.
NHS-ester to primary amine: Reacts with lysine side chains or N-termini; straightforward but less site-specific, which can alter cargo function if the amine is near an active site.
Click chemistry (CuAAC or SPAAC): Highly selective, compatible with complex biological environments, and increasingly used for CPP-nanoparticle conjugation where steric constraints limit other chemistries.
Disulfide linkers: Reversible under reducing intracellular conditions (glutathione), making them useful when cargo release in the cytosol is required. Less stable in oxidizing extracellular environments.
Non-covalent complexation: Electrostatic interaction between cationic CPPs and anionic nucleic acids (siRNA, plasmid DNA, antisense oligonucleotides). Simple to prepare but susceptible to displacement by serum proteins and competing polyanions.
Cargo-specific conjugation guidance
Cargo type | Recommended conjugation strategy | Key experimental caveats |
Protein / enzyme | Maleimide-thiol or click chemistry (site-specific) | Verify activity post-conjugation; NHS-ester can inactivate active-site lysines |
Peptide cargo | Direct solid-phase co-synthesis or disulfide linker | Confirm correct disulfide pairing; monitor for scrambling |
Oligonucleotide (siRNA, ASO) | Non-covalent complex or covalent thiol-maleimide | Serum stability of non-covalent complexes is low; test in 50% serum |
Nanoparticle | Click chemistry or surface amine coupling | Surface density of CPP affects uptake mechanism; optimize loading ratio |
Small molecule | NHS-ester or direct synthesis | Confirm cargo is not released extracellularly before cell entry |
A frequently overlooked practical issue is the effect of fluorescent labels on uptake behavior. Attaching a bulky fluorophore such as FITC or rhodamine to a CPP can shift the dominant uptake mechanism, alter endosomal sorting, and change cytosolic distribution. Labeled and unlabeled constructs should be characterized in parallel, particularly when quantitative uptake data will be reported.
What design rules improve cytosolic delivery of CPPs?
Three evidence-backed strategies dominate current efforts to improve cytosolic penetration: masking backbone amides to promote passive diffusion across the lipid bilayer, patterning guanidinium groups to promote productive endocytic uptake and endosomal escape, and amphipathic patterning using stabilized helices for endocytic routes. These strategies are not mutually exclusive, and the most effective designs often combine elements from more than one.
Sequence-level design rules
Arginine outperforms lysine for membrane translocation because the guanidinium group forms bidentate hydrogen bonds with phospholipid phosphates and sulfated glycosaminoglycans, while the ammonium group of lysine forms only monodentate interactions. Optimal arginine content for most cationic CPPs involves a moderate number of residues; sequences with too few arginines show reduced uptake, while those with excessive arginines risk lytic activity and aggregation.
Hydrophobic patches matter for amphipathic CPPs but must be balanced carefully. Excessive hydrophobicity increases membrane disruption and cytotoxicity, particularly for helical sequences where the hydrophobic face is fully exposed. Stapling (hydrocarbon cross-linking of helical peptides) and macrocyclization constrain conformation, improve protease resistance, and can enhance membrane binding without increasing lytic activity proportionally.
Backbone N-methylation and incorporation of D-amino acids are the two most practical routes to improved metabolic stability in serum. D-amino acid substitution at protease-sensitive positions extends half-life substantially while often preserving uptake efficiency, though the effect on cargo activity must be verified case by case. N-methylation reduces amide bond recognition by proteases and simultaneously masks hydrogen bond donors, which can promote passive membrane permeation.
Design principle: Guanidinium patterning, not simply total positive charge, determines the efficiency of productive endocytic uptake. Spacing arginine residues to allow simultaneous multivalent contact with membrane phospholipids or heparan sulfates is more effective than clustering them at one terminus.
Pro Tip: When optimizing a new CPP sequence, run cytosol-specific assays (CAPA or protein complementation) alongside standard flow cytometry from the first iteration. Total cellular fluorescence is a poor proxy for cytosolic access, and iterating on a metric that does not reflect functional delivery wastes significant experimental effort.
Researchers designing CPPs for in vivo use should also account for the environmental responsiveness of their sequences. pH-responsive elements that activate endosomal escape at low pH (roughly 5.0–6.5), and sequences that remain stable in the reducing extracellular environment but release cargo upon encountering intracellular glutathione, represent practical engineering strategies for translational applications.
What are the main applications of cell-penetrating peptides in research and therapy?
CPPs are used across five major application areas: in vitro intracellular delivery for mechanistic studies, live-cell imaging and diagnostics, oligonucleotide and gene-editing delivery, protein and peptide therapeutics, and cancer-targeted payload delivery. The evidence base ranges from well-established in vitro methodology to early-phase clinical investigation, depending on the application.
In vitro delivery and mechanistic studies
TAT-mediated delivery of proteins and peptides into cultured cells is among the most extensively documented CPP applications. TAT fusion proteins have been used to deliver dominant-negative constructs, transcription factors, and genome-editing enzymes (Cas9 and base editors) into primary cells and cell lines where transfection efficiency is low. The main experimental challenge is distinguishing true cytosolic delivery from endosomal accumulation, which requires cytosol-specific assays rather than total fluorescence quantification.
Imaging and diagnostics
CPP-fluorophore conjugates enable real-time visualization of intracellular compartments and organelle dynamics. Penetratin and TAT conjugated to quantum dots or near-infrared dyes have been used for tumor imaging in preclinical models, exploiting the enhanced permeability and retention effect alongside active CPP-mediated uptake. The practical limitation is that fluorophore attachment can alter uptake kinetics, so imaging constructs require independent validation of delivery efficiency.
Oligonucleotide and gene-editing delivery
Cationic CPPs, particularly R8 and R9, form electrostatic complexes with siRNA, antisense oligonucleotides, and splice-switching morpholinos. These complexes improve cellular uptake of nucleic acids that would otherwise be excluded by the anionic cell membrane. Endosomal escape remains the rate-limiting step for functional gene silencing, and co-delivery of endosomolytic agents or pH-responsive CPP variants is often required to achieve meaningful knockdown.
Cancer-targeted delivery: the p28 example
p28, a 28-residue fragment of the bacterial protein azurin, represents a distinct category of CPP with intrinsic tumor-targeting properties. Azurin preferentially enters cancer cells over normal cells through a mechanism involving preferential interaction with tumor cell surface proteins, and p28 retains this selectivity while also stabilizing p53 by inhibiting its ubiquitination. Early-phase clinical studies have investigated p28 in patients with advanced solid tumors, making it one of the few CPP-derived sequences with direct clinical translation data. The cargo in this case is the peptide itself, rather than an exogenous molecule, illustrating that CPPs need not always function as passive carriers.
Application summary
Application | Common cargos | Key translational challenges |
In vitro mechanistic delivery | Proteins, dominant-negative peptides, Cas9 | Endosomal entrapment; assay artifact from fluorescent labels |
Live-cell imaging | Fluorophores, quantum dots, NIR dyes | Label-induced uptake mechanism shift; phototoxicity |
Oligonucleotide delivery | siRNA, ASO, morpholino | Serum instability of complexes; endosomal escape efficiency |
Protein therapeutics | Enzymes, transcription factors, antibody fragments | Cargo size limits; conjugation-induced activity loss |
Cancer-targeted delivery | Cytotoxic peptides, p28, small-molecule drugs | Cell-type selectivity; systemic stability; immunogenicity |
What are the main limitations and safety concerns for CPP research?
The primary translational blockers for CPPs are lack of cell-type specificity, endosomal entrapment, rapid proteolytic degradation in serum, potential membrane lysis at high hydrophobicity, and immunogenicity. Each of these represents a genuine experimental and clinical challenge, not a theoretical concern.
Cell-type specificity is perhaps the most underappreciated limitation. Early literature described CPPs as broadly membrane-permeant, but uptake efficiency varies substantially with membrane composition, particularly heparan sulfate density and glycocalyx structure. A CPP that delivers cargo efficiently in HeLa cells may show substantially lower uptake in primary neurons or endothelial cells. Researchers should characterize uptake in the specific cell type relevant to their biological question, not extrapolate from a convenient cell line.
Endosomal entrapment is a quantitative problem. The majority of endocytosed CPP-cargo complexes do not escape the endosomal compartment and are degraded in lysosomes. This means that high total cellular uptake, as measured by flow cytometry or confocal microscopy without endosomal markers, routinely overestimates functional cytosolic delivery.
Toxicity context: Strongly amphipathic CPPs, particularly those with large hydrophobic faces, can disrupt membranes at concentrations approaching their effective delivery range. Researchers should establish a therapeutic index (effective delivery concentration vs. cytotoxic concentration) for each new sequence before interpreting biological effects. Hemolysis assays and LDH release assays in relevant cell types are standard first-pass toxicity screens.
Proteolytic instability in serum is a primary failure mode for in vivo applications. L-amino acid CPPs are rapidly degraded by serum proteases, with half-lives often measured in minutes under physiological conditions. Stability modifications (D-amino acids, N-methylation, macrocyclization) extend half-life but must be validated for each sequence because modifications that improve stability sometimes reduce uptake efficiency or alter endosomal sorting.
Immunogenicity is a concern for repeated in vivo dosing, particularly for chimeric or protein-derived sequences that may be recognized as foreign antigens. Standard immunogenicity screening includes ELISA-based antibody detection after repeated dosing in rodent models and, for clinical candidates, in vitro T-cell activation assays. Synthetic sequences with non-natural backbone modifications may have lower immunogenic potential, though this has not been systematically established across CPP classes.
For artifact control, researchers should include: a scrambled sequence control (same amino acid composition, randomized order) to distinguish sequence-specific from charge-mediated effects; a non-penetrating cargo control to confirm that uptake requires the CPP; and a membrane integrity assay (propidium iodide exclusion or LDH release) to confirm that apparent cytosolic delivery is not an artifact of membrane disruption.
How should researchers design and report CPP uptake experiments?
The single most important experimental requirement is measuring cytosolic access, not just total cellular uptake, and reporting full conjugation and analytical verification details so that other laboratories can reproduce the result. Standard fluorescence uptake assays, without endosomal discrimination, overestimate cytosolic delivery and have contributed to a substantial body of literature that is difficult to reproduce.
Minimum reporting checklist
Every publication reporting CPP-mediated delivery should include:
Exact peptide sequence (one-letter code), net charge at physiological pH, and all modification positions (D-amino acids, N-methylation, staples, labels)
Conjugation chemistry (covalent or non-covalent), linker identity, and attachment site
Peptide purity confirmed by HPLC (percentage and method) and identity confirmed by mass spectrometry
Labeling method and fluorophore identity, with a note on whether labeled and unlabeled constructs were compared
Cell type, passage number, and culture conditions at the time of the experiment
Peptide concentration, incubation time, and temperature
Orthogonal assays used to confirm cytosolic access (not just total uptake)
Negative controls (scrambled sequence, cargo alone) and positive controls (known cytosolic delivery agent)
Recommended assays
Flow cytometry with extracellular quench controls (trypan blue or trypsin wash) distinguishes surface-bound from internalized peptide but cannot distinguish endosomal from cytosolic localization. It is a useful first-pass quantification tool, not a cytosolic access assay.
Confocal colocalization with endosomal markers (EEA1 for early endosomes, LAMP1 for late endosomes/lysosomes) identifies whether fluorescent cargo is trapped in the endosomal pathway. High colocalization with LAMP1 indicates lysosomal degradation rather than cytosolic delivery.
Protein complementation assays (CAPA) and split-reporter systems (split GFP, split luciferase) provide direct, quantitative readout of cytosolic access by requiring the delivered CPP-cargo to reconstitute a reporter only when it reaches the cytosol. These assays are the current standard for confirming functional delivery.
Protease protection assays distinguish luminal (endosomal) from cytosolic localization by exposing cells to membrane-impermeant proteases after CPP treatment; cytosolic cargo is protected, while endosomal cargo is not.
Reporting standard: Reporting total cellular fluorescence without a cytosolic access assay is insufficient for claims of intracellular delivery. The field’s reproducibility problems are substantially attributable to this gap. Cytosol-specific readouts should be treated as mandatory, not optional, for any mechanistic or therapeutic delivery claim.
Labeling and cargo effects on uptake pathway deserve explicit attention in the methods section. A CPP that delivers a small fluorophore efficiently may not deliver a 50 kDa protein through the same mechanism or at the same efficiency. Cargo size, charge, and hydrophobicity all modulate the dominant uptake pathway, and this should be stated explicitly rather than assumed constant across experimental conditions.
What should researchers require when sourcing research-grade CPPs?
HPLC and mass spectrometry verification, provided in a batch-specific Certificate of Analysis (COA), are non-negotiable for reproducible CPP research. Batch-to-batch variation in synthetic peptides, including truncated sequences, incorrect salt forms, and residual synthesis impurities, can substantially alter physicochemical behavior and confound experimental results in ways that are difficult to diagnose after the fact.
Required COA items and verification steps
HPLC chromatogram with retention time and purity percentage (greater than 95% for research-grade CPPs; greater than 98% for quantitative mechanistic studies)
Mass spectrometry confirmation of molecular weight (within 1 Da of theoretical for standard sequences; isotope pattern for modified sequences)
Exact salt form and counterion identity (TFA vs acetate salt affects membrane interaction and cytotoxicity at high concentrations)
Lot number and synthesis date for traceability
Storage recommendation (temperature, solvent, lyophilized vs solution)
Handling instructions, including reconstitution solvent and concentration limits
Researchers sourcing CPPs should also verify that the supplier uses solid-phase peptide synthesis (SPPS) with documented coupling efficiency monitoring, rather than recombinant expression for sequences where post-translational modifications could confound results. For modified sequences (D-amino acids, N-methylated residues, stapled peptides), the COA should explicitly confirm modification identity, not just overall molecular weight. Rapidcorebio provides batch-specific HPLC and MS verification for all peptide products, with COA documentation available through its verification portal, which is particularly relevant for researchers who need lot-traceable records for publication.
Pro Tip: Before purchasing from any supplier, ask specifically for a representative COA from a recent batch of the peptide you intend to order. Evaluate the HPLC trace for baseline resolution and the absence of major impurity peaks, not just the reported purity percentage. A single-number purity figure without the underlying chromatogram is insufficient for research-grade procurement decisions. Also ask whether the supplier can provide stability data for the specific sequence under your intended storage conditions, as CPP stability varies considerably with sequence composition and counterion form.
Peptide stability and storage conditions should be specified by the supplier and verified by the researcher. Most lyophilized CPPs are stable at -20°C for 12–24 months when protected from moisture and light, but reconstituted solutions degrade substantially faster, particularly for sequences containing methionine, cysteine, or tryptophan. Aliquoting reconstituted stock solutions and avoiding freeze-thaw cycles are standard practices that should be documented in experimental methods.
Where is the CPP field heading, and what are the near-term research priorities?
The CPP field is shifting from discovery-driven screening of novel sequences to deliberate, context-dependent design that aligns peptide physicochemical properties with specific cargo characteristics and biological goals. The emerging consensus is that universal CPPs do not exist: effective delivery requires matching peptide design to cargo, cell type, and intended intracellular destination.
Near-term research priorities for laboratories working on CPPs include:
Quantitative cytosolic access assays: Standardizing CAPA and protein complementation assays across laboratories to enable direct comparison of delivery efficiency between CPP designs and research groups
Stability engineering for in vivo use: Systematic evaluation of D-amino acid substitution patterns, N-methylation positions, and macrocyclization strategies that preserve uptake while extending serum half-life beyond the range achievable with standard L-amino acid sequences
Cell-targeting motifs: Integration of receptor-binding ligands (RGD sequences, tumor-homing peptides, antibody fragments) with CPP sequences to achieve cell-type selectivity without sacrificing translocation efficiency
Endosomal escape mechanisms: Mechanistic characterization of pH-responsive and membrane-active elements that promote endosomal disruption at endosomal pH without causing cytotoxicity at plasma membrane pH
Standardized reporting frameworks: Adoption of minimum reporting standards (sequence, purity, conjugation chemistry, cytosolic access assay) as a field-wide norm to address the reproducibility gap
The single most immediately implementable next experiment for most CPP laboratories is replacing or supplementing standard fluorescence uptake assays with a cytosol-specific readout. This change alone would substantially improve the interpretability of existing experimental pipelines without requiring new peptide synthesis or cell models.
Key Takeaways
Cell-penetrating peptides require deliberate sequence design, cytosol-specific assay validation, and batch-verified sourcing to produce reproducible intracellular delivery results.
Point | Details |
Mechanism is concentration-dependent | The dominant uptake pathway shifts between endocytosis and direct translocation with peptide concentration, cargo, and cell type. |
Cytosolic access must be measured directly | Standard fluorescence uptake assays overestimate cytosolic delivery; CAPA or protein complementation assays are required for reliable claims. |
Stability modifications are necessary for in vivo use | D-amino acids, N-methylation, and macrocyclization extend serum half-life while often preserving uptake efficiency. |
COA verification is non-negotiable | Batch-specific HPLC and MS data, including salt form and lot number, are required to avoid confounding results from synthesis impurities or truncations. |
Rapidcorebio for sourcing | Rapidcorebio provides batch-specific HPLC and MS-verified CPPs with full COA documentation for research-grade procurement. |
The reproducibility problem is the real bottleneck in CPP research
The CPP field has produced an enormous volume of delivery data over the past three decades, yet reproducibility across laboratories remains a persistent challenge. The mechanistic complexity is real, but the reproducibility gap is not primarily a mechanistic problem. It is a measurement and reporting problem.
The most consequential shift a CPP researcher can make is not choosing a better peptide sequence. It is choosing a better assay. Total cellular fluorescence, the dominant readout in the published literature, cannot distinguish endosomal from cytosolic localization. Protein complementation assays and CAPA can. The difference between these two measurement approaches is not a technical nuance; it is the difference between knowing whether cargo reached the cytosol and assuming it did.
A second underappreciated issue is the role of peptide quality in confounding results. Truncated sequences, incorrect salt forms, and synthesis impurities are not rare events in commercial peptide production. They are common enough that batch-to-batch variation has been documented as a source of irreproducible uptake data. Researchers who do not require HPLC traces and mass spectrometry confirmation from their suppliers are, in effect, running experiments with incompletely characterized reagents. The COA is not a formality; it is a data point.
The field’s shift toward deliberate design, as opposed to empirical screening, is a positive development. But deliberate design only produces reliable conclusions when paired with assays that actually measure what they claim to measure and reagents whose identity is analytically confirmed. Those two requirements are not aspirational standards. They are the baseline for publishable mechanistic claims.
Rapidcorebio supports research-grade CPP studies with verified peptides
Researchers working with cell-penetrating peptides need more than a catalog number. They need batch-specific analytical data, clear storage guidance, and a supplier whose quality control process is documented and traceable. Rapidcorebio provides research-grade peptides with HPLC and mass spectrometry verification for every batch, with COA documentation that includes purity percentage, molecular weight confirmation, salt form, and lot-specific storage recommendations.
All peptides distributed by Rapidcorebio are intended strictly for laboratory research use. They are not approved for human or animal administration, and all orders are processed under research-use terms. For researchers who need to verify batch quality before committing to a full order, COA documentation is available through the Rapidcorebio verification portal. Researchers who want to review peptide design terminology, storage protocols, and experimental frameworks before ordering can consult the Rapidcorebio research handbook as a practical reference.
