Peptide TFA Removal: Validated HCl Exchange Protocol
- 11 minutes ago
- 11 min read
For most sensitive biological assays and structural analyses, you should remove TFA from your synthetic peptide before use. The single most practical method is HCl counterion exchange followed by lyophilization, and a 2025 peer-reviewed study confirmed that 10 mM HCl reduces residual TFA below the limit of quantification in a single cycle without affecting peptide purity.
Quick protocol (3 steps):
Dissolve peptide at approximately 1 mg/mL in water.
Add HCl to a final concentration of 10 mM, freeze at −80°C, and lyophilize.
Confirm residual TFA by 19F-NMR or HPLC-ELSD before proceeding.
Decision checklist — should you remove TFA?
Remove TFA if you are running cell-based assays at low peptide dilution, permeability or membrane assays, structural characterization by NMR or CD, or in vitro cytotoxicity screens.
Skip removal if your assay dilutes the peptide sufficiently that the final TFA concentration falls well below assay-sensitive thresholds, or if you are running a non-pH-sensitive, non-cell-based analytical screen.
Pro Tip: Estimate the final TFA concentration in your assay well before committing to exchange. Many researchers run the exchange reflexively when dilution alone would have rendered TFA inconsequential.
Key Takeaways
The single most reliable approach to peptide TFA removal is one cycle of 10 mM HCl counterion exchange followed by lyophilization, validated in 2025 to reduce TFA below the limit of quantification without affecting peptide purity.
Point | Details |
10 mM HCl is the validated optimum | One lyophilization cycle at 10 mM HCl reaches below-LoQ residual TFA for most peptide sequences. |
Basic-rich sequences need extra cycles | Peptides with multiple Lys, Arg, or His residues may require a second cycle or ion-exchange chromatography. |
Acetate beats chloride for cell assays | Acetate counterion is less acidic than HCl and reduces the risk of acid-driven artifacts in cell-based assays. |
Always confirm with 19F-NMR or HPLC-ELSD | Monitor both TFA and Cl− signals to confirm stoichiometric exchange, not just TFA dilution. |
Verify starting purity before exchange | Check your COA and run analytical HPLC-UV before and after exchange to confirm no purity loss occurred. |
Table of Contents
Why does residual TFA interfere with your assays?
TFA is not a passive spectator in your peptide vial. As a strong acid and a potent ion-pairing agent, it persists as a counterion bound to the basic residues of your peptide, and it carries real biological and analytical consequences.
On the biological side, TFA at concentrations achievable in low-dilution cell assays can suppress cell proliferation, trigger immune activation, and confound cytotoxicity readouts. The effect is not subtle enough to dismiss: a peptide that looks toxic in a screen may simply be delivering a TFA payload to your cells.
Analytically, TFA creates a weight bias because the peptide is weighed as a salt, not as the free base. This inflates apparent peptide mass and underestimates actual molar concentration. TFA also alters retention in reversed-phase HPLC, shifts NMR and FT-IR signatures, and distorts circular dichroism (CD) spectra in the far-UV region where amide bonds absorb. Peptides are commonly supplied as TFA salts because TFA is used during Fmoc cleavage and as an ion-pairing reagent in preparative RP-HPLC, so residual levels vary with sequence and basic-residue count.
Use cases that typically require TFA removal:
Cell viability, proliferation, or cytotoxicity assays at peptide concentrations below 100 µM
Membrane permeability and transport assays
Structural studies: NMR, CD, ATR-FT-IR
In vitro receptor-binding assays where pH sensitivity matters
Any assay where TFA’s contribution to ionic strength or acidity would shift the result
Pro Tip: Run a quick 19F-NMR on a representative batch before your first assay. Knowing the actual TFA load lets you decide whether exchange is necessary or whether a dilution calculation settles the question.

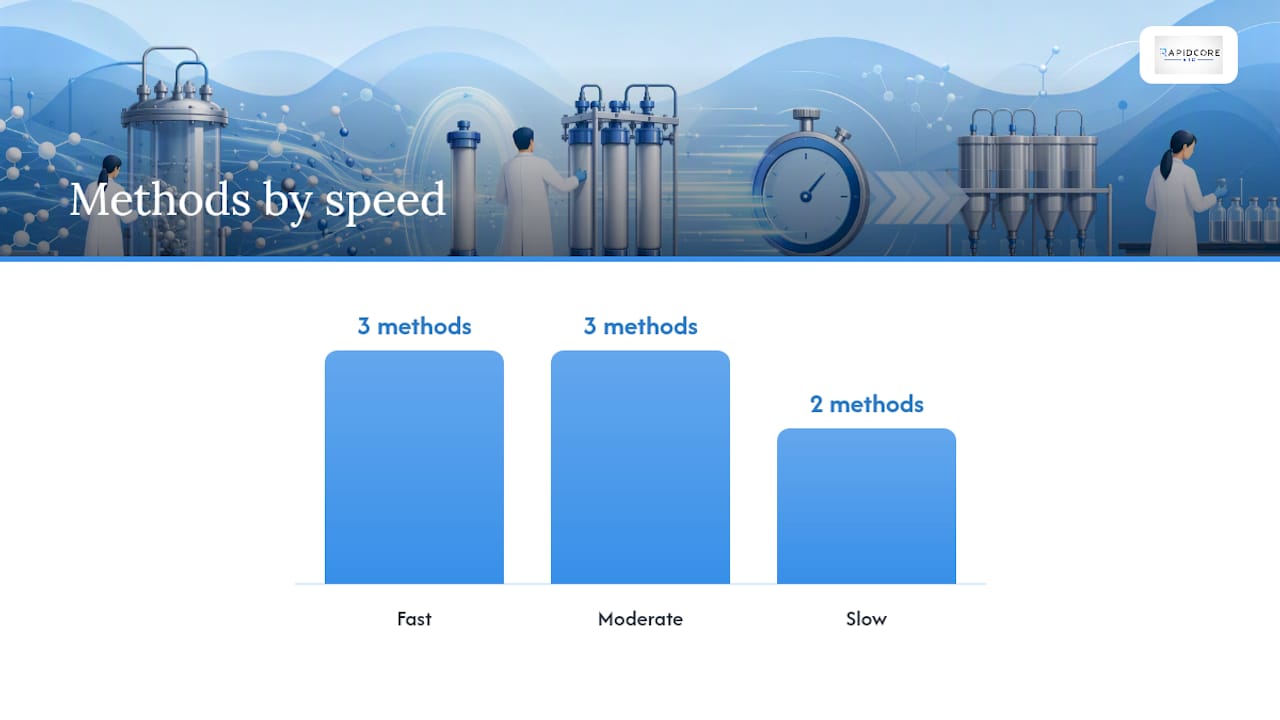

What are the main methods for removing TFA from peptides?
Several validated exchange strategies exist, each with a different speed-to-risk profile. The right choice depends on your peptide’s sequence, your downstream assay, and the equipment you have on hand.
Method comparison:
Method | Speed | Key equipment | Peptide integrity risk | Best for |
HCl exchange + lyophilization | Fast (1–2 cycles) | Lyophilizer, −80°C freezer | Low at 10 mM HCl | Most peptides; routine labs |
Repeated lyophilization (water only) | Moderate (3+ cycles) | Lyophilizer | Very low | Free/unbound TFA only |
Acetate exchange + lyophilization | Fast | Lyophilizer | Low | Cell-based assays |
Ion-exchange chromatography | Moderate | Ion-exchange column | Low–moderate | Basic-rich or CPP sequences |
RP-HPLC reformulation | Slow | Preparative HPLC | Low | Complex mixtures needing purification |
Deprotonation/reprotonation cycles | Moderate | pH meter, buffers | Moderate | Acid-sensitive sequences |
Dialysis/ultrafiltration | Slow | Dialysis membrane or centrifugal filter | Low | Large peptides, low TFA content |
Ether precipitation | Fast | Centrifuge | Moderate | Hydrophobic peptides |
A few important caveats. Repeated lyophilization with water alone removes free, unbound TFA but cannot displace TFA that is ionically paired to basic residues; you need stoichiometric displacement for that. Ion-exchange chromatography works well for strongly cationic peptides but requires volatile buffers (such as ammonium formate) if you plan to lyophilize afterward. RP-HPLC reformulation is the most thorough option for complex mixtures but adds time and solvent cost. Reversed-phase liquid chromatography remains the most common purification platform, and switching the mobile-phase additive from TFA to acetic acid or formic acid during a preparative run is a practical reformulation strategy.
How do you run the validated HCl counterion-exchange protocol?
The 10 mM HCl method is the workhorse of peptide TFA removal in most research labs. It is fast, requires no specialized chromatography, and the 2025 systematic study confirmed it achieves below-LoQ residual TFA in one cycle for a range of peptide sequences.
Stepwise protocol
Dissolve the lyophilized peptide in ultrapure water at approximately 1 mg/mL. For poorly soluble peptides, add a minimal volume of acetonitrile (no more than 10–20%) before diluting with water.
Prepare HCl solution. Dilute concentrated HCl (37%) to a stock of known molarity, then add to the peptide solution to reach a final HCl concentration of 10 mM. Verify with a calibrated pH meter.
Mix gently at room temperature for 5–10 minutes to allow counterion equilibration.
Freeze the solution at −80°C. Snap-freezing in liquid nitrogen is acceptable and speeds the process.
Lyophilize to dryness. A standard overnight cycle is sufficient for most volumes under 5 mL.
Redissolve in the appropriate buffer or solvent for your downstream assay.
Repeat if QC shows TFA above LoQ. For basic-rich sequences (multiple Lys, Arg, or His residues), a second cycle at 10 mM is often sufficient.
Supplier protocols from LifeTein align with this approach: dissolve at ~1 mg/mL, apply HCl in the low mM range, freeze, lyophilize, and repeat as needed.
Precautions
Avoid HCl concentrations above 100 mM unless you have sequence-specific validation. Higher concentrations increase the risk of acid-catalyzed hydrolysis at Asp-Pro bonds and deamidation of Asn/Gln.
Monitor pH after redissolving. If the solution is unexpectedly acidic, the exchange may have introduced excess HCl; a brief additional lyophilization cycle from water can help.
Use low-ionic-strength buffers post-exchange to avoid masking the Cl− signal in downstream analytical checks.
QC checklist after exchange
Analytical HPLC-UV: confirm purity is unchanged from pre-exchange baseline.
19F-NMR or HPLC-ELSD: confirm TFA is below LoQ.
If possible, confirm Cl− increase by ion chromatography or mixed-mode HPLC-ELSD to demonstrate stoichiometric exchange rather than just TFA loss.
Check peptide mass by LC-MS to rule out hydrolysis or oxidation artifacts.
Troubleshooting:
TFA still above LoQ after one cycle: repeat with a fresh 10 mM HCl solution; consider a second lyophilization from water between cycles.
Peptide precipitates during exchange: add 5–10% acetonitrile to the aqueous solution before adding HCl.
Apparent mass shift on LC-MS: check for Asp-Pro hydrolysis or Met oxidation; reduce HCl exposure time.
Poor lyophilization cake: increase the shelf temperature ramp rate or add a small amount of mannitol as a bulking agent (note this will affect weight calculations).
Pro Tip: Keep your peptide concentration at or below 1 mg/mL during exchange. Higher concentrations increase the risk of aggregation and slow counterion equilibration, which can give you a false-negative QC result after the first cycle.
How do you detect and quantify residual TFA in peptides?
Validated detection methods exist, and three approaches cover most lab scenarios: 19F-NMR, mixed-mode HPLC with evaporative light-scattering detection (HPLC-ELSD), and ATR-FT-IR. All three were adapted and validated to ICH guidelines in the 2025 systematic study, giving you a solid methodological foundation to reference in your protocols or manuscripts.
The USP monograph 〈503.1〉 treats TFA as a common residual process impurity in peptide manufacture and provides pharmacopeial-level guidance on its quantification, which is a useful anchor for regulatory-adjacent work.
Method-by-method breakdown:
19F-NMR: Highly specific for fluorine-containing species. No chromatographic separation needed. Quantitative when an internal standard is used. Requires an NMR instrument (400 MHz or higher preferred) and moderate sample prep. Best for confirming below-LoQ status and for research labs with NMR access.
Mixed-mode HPLC-ELSD: Separates TFA and the incoming counterion (e.g., Cl−) in a single run. Allows simultaneous monitoring of TFA decrease and Cl− increase, which demonstrates stoichiometric exchange rather than mere TFA dilution. Requires an ELSD detector and a mixed-mode column (e.g., a column with both reversed-phase and ion-exchange character). Moderate throughput; well-suited to batch QC.
ATR-FT-IR: Detects the C-F stretch of TFA (around 1,200 cm⁻¹) and the CF₃ asymmetric stretch. Fast and requires minimal sample prep. Semi-quantitative unless calibrated against standards. Most useful as a rapid screening tool before committing to NMR or HPLC confirmation.
Key threshold: The 2025 study used “below the limit of quantification” as the acceptance criterion for successful exchange. Practically, this means the TFA signal is indistinguishable from background noise in your validated method, which is the bar you should document in your lab protocol.
QC workflow recommendation:
Screen with ATR-FT-IR after the first lyophilization cycle for a rapid pass/fail read.
Confirm with 19F-NMR or HPLC-ELSD if FT-IR suggests residual TFA or if the assay is particularly sensitive.
Document both TFA and Cl− signals where possible to demonstrate true exchange, not just TFA removal.
Which counterion should you use after TFA removal?
Chloride (Cl−) and acetate are the two workhorses, and the choice is not arbitrary. It depends on your assay chemistry, your cells, and what you can tolerate in solution.
Chloride (Cl−) is convenient, stoichiometrically predictable, and compatible with most routine biochemical and biophysical analyses. It is the default for most labs running HCl exchange because the protocol is straightforward and Cl− is already present in most physiological buffers. The main caveat: HCl exchange produces a mildly acidic solution, which can matter for pH-sensitive assays.
Acetate is often the better choice for cell-based assays. It is less acidic than both TFA and HCl, and supplier guidance consistently recommends it for biological applications where minimizing acid-driven artifacts or cellular toxicity is a priority. Acetate exchange uses ammonium acetate or acetic acid in place of HCl, with the same freeze-dry cycle.
Other options:
Formate: Volatile, compatible with lyophilization, useful when you need a counterion that will not interfere with MS detection.
Ammonium: Useful in combination with formate or acetate for volatile-buffer workflows; lyophilizes cleanly.
Decision checklist by assay type:
Cell viability, proliferation, or cytotoxicity assay → acetate (milder acidity, lower artifact risk)
Biophysical characterization (NMR, CD, ITC) → chloride (stoichiometrically clean, well-characterized)
Mass spectrometry-coupled assays → formate or acetate (volatile, MS-compatible)
Routine biochemical assay in physiological buffer → chloride (default, compatible with PBS/HEPES systems)
Membrane permeability assay → acetate (lower acidity protects membrane integrity)
What do you do when standard exchange does not work?
Some peptides resist the standard HCl lyophilization approach. Cell-penetrating peptides (CPPs) with five or more basic residues, strongly cationic sequences, and acid-sensitive peptides (those containing Asp-Pro bonds or multiple Met residues) all present challenges that require a different playbook.
Ion-exchange chromatography is the most reliable alternative for basic-rich sequences. Use a strong cation-exchange resin with a volatile buffer system (ammonium formate, pH 4.5–6.0) so the eluate can be lyophilized directly. Waters’ practical isolation guidance recommends volatile buffers specifically for this reason: they leave no non-volatile salt residue after lyophilization.
RP-HPLC reformulation works well when you need simultaneous purification and counterion exchange. The eluate contains acetate or formate as the dominant counterion. This approach suits complex mixtures where purity and counterion control are both needed in one step.
Deprotonation/reprotonation cycles are an option when you want to avoid strong acids entirely. Raise the pH to approximately 10–11 with dilute ammonia to deprotonate basic residues, then re-acidify to the desired pH with acetic acid. The cycle displaces TFA without exposing the peptide to HCl. Monitor pH carefully; overshooting alkalinity can cause racemization or Cys oxidation.
Dialysis or ultrafiltration suits larger peptides (above ~3 kDa) with low TFA content. Dialyze against multiple changes of 10 mM ammonium acetate, then lyophilize. Throughput is low and the process takes 12–24 hours, but peptide integrity risk is minimal.
Practical lab tips, safety, and waste disposal
Getting the chemistry right is half the job. The other half is not burning through your peptide stock or creating a safety incident in the process.
Troubleshooting common problems:
Incomplete exchange after two cycles: switch to ion-exchange chromatography; the peptide likely has too many basic residues for HCl lyophilization alone.
Peptide solubility drops after exchange: the counterion change has altered the salt form’s solubility. Try redissolving in 10–20% DMSO or acetonitrile before diluting into aqueous buffer.
Apparent degradation on LC-MS: reduce HCl contact time and concentration; check for Asp-Pro hydrolysis specifically.
Cross-contamination in multi-sample workflows: use dedicated lyophilization flasks per peptide and label clearly; TFA vapor can migrate between open vials in a shared lyophilizer manifold.
Safety checklist:
Wear nitrile gloves, safety glasses, and a lab coat when handling concentrated HCl and neat TFA.
Prepare HCl dilutions in a fume hood; TFA is volatile and irritating to mucous membranes.
Store TFA in a secondary containment tray in a ventilated acid cabinet, away from bases and oxidizers.
Neutralize acidic aqueous waste (HCl, TFA solutions) with sodium bicarbonate to pH 6–8 before disposal per your institution’s chemical waste guidelines and applicable EPA regulations.
Lyophilized TFA-containing waste is a solid acid waste; label and dispose through your institutional hazardous waste program.
Pro Tip: For multi-sample workflows, process peptides in batches of similar sequence type (e.g., all basic-rich together, all neutral together) and run a QC check on one representative sample per batch before committing the entire set to downstream assays.
What does the 2025 systematic study actually tell you?
The most practically useful recent data on peptide TFA removal comes from a 2025 peer-reviewed study that systematically compared HCl concentrations and cycle numbers for counterion exchange across multiple peptide sequences. The headline finding: 10 mM HCl achieves below-LoQ residual TFA in a single lyophilization cycle, with no observed purity loss across the tested peptide set.
The concentration-response data is worth knowing in detail:
HCl concentration | Cycles to reach below LoQ | Purity impact |
2 mM | 3 cycles | None observed |
5 mM | 2 cycles | None observed |
10 mM | 1 cycle | None observed |
100 mM | 1 cycle | None observed (tested set) |
The practical takeaway: 10 mM is the sweet spot. It achieves single-cycle efficiency without the degradation risk that higher concentrations carry for acid-sensitive sequences. Going to 100 mM does not improve the outcome for most peptides and introduces unnecessary risk.
Sequence-dependence matters. Peptides with multiple Lys, Arg, or His residues bind TFA more tightly through ionic pairing, and may require a second cycle even at 10 mM. The study’s control condition (0 mM HCl, water lyophilization only) reduced free TFA but left ionically bound TFA above LoQ for some sequences, confirming that water lyophilization alone is insufficient for basic-rich peptides.
Actionable translation:
Standard peptide (0–2 basic residues): one cycle at 10 mM HCl, single QC check.
Moderately basic peptide (3–4 basic residues): one cycle at 10 mM, confirm by 19F-NMR, repeat if above LoQ.
Strongly basic or CPP (5+ basic residues): plan for two cycles at 10 mM or switch to ion-exchange chromatography.
Monitor both TFA and Cl− signals in your QC run to confirm stoichiometric exchange rather than just TFA dilution.
How Rapidcorebio supports your TFA removal workflow
At Rapidcorebio, every research-grade peptide we distribute comes with a Certificate of Analysis (COA) that includes HPLC purity data and mass spectrometry confirmation. You can verify COA documentation directly on our site before you run any exchange protocol, so you know your starting purity baseline before you touch a vial.
We supply peptides as research compounds only, not for human or animal use. When a researcher contacts our technical support team with a TFA-related question, we advise on counterion exchange options based on sequence composition and downstream assay type. Our research handbook covers analytical verification practices and protocol references that complement the exchange workflow described here.
If your peptide has a complex sequence or you are working with a particularly acid-sensitive compound, reach out to our support team directly. We would rather help you get the exchange right the first time than have you troubleshoot a degraded batch.
This article describes research-use protocols for laboratory professionals. All peptides referenced are research compounds only and are not intended for human or animal administration.
Sources
The following sources underpin the protocols and analytical recommendations in this guide. Cite them when documenting methods in your lab protocols or manuscripts.
